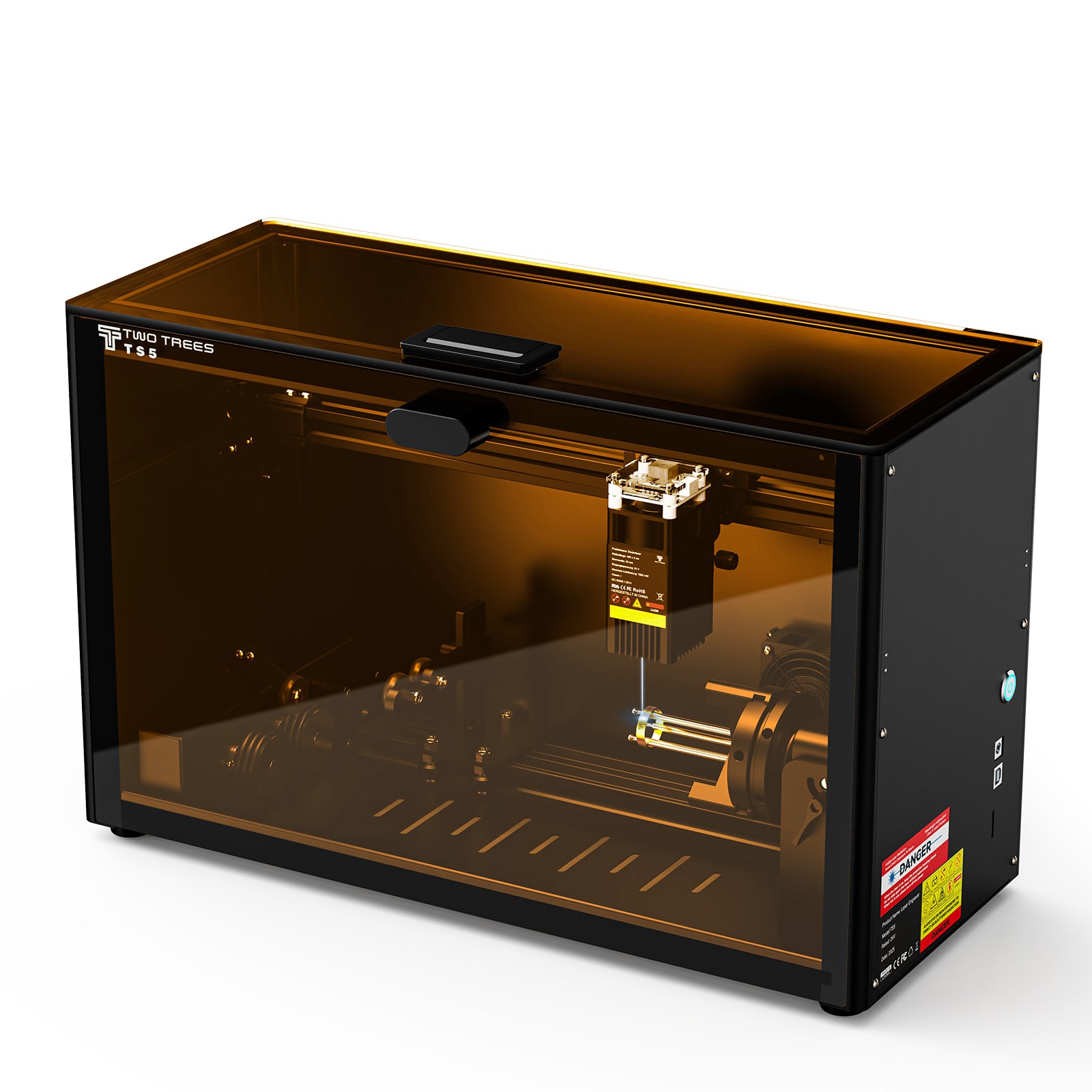

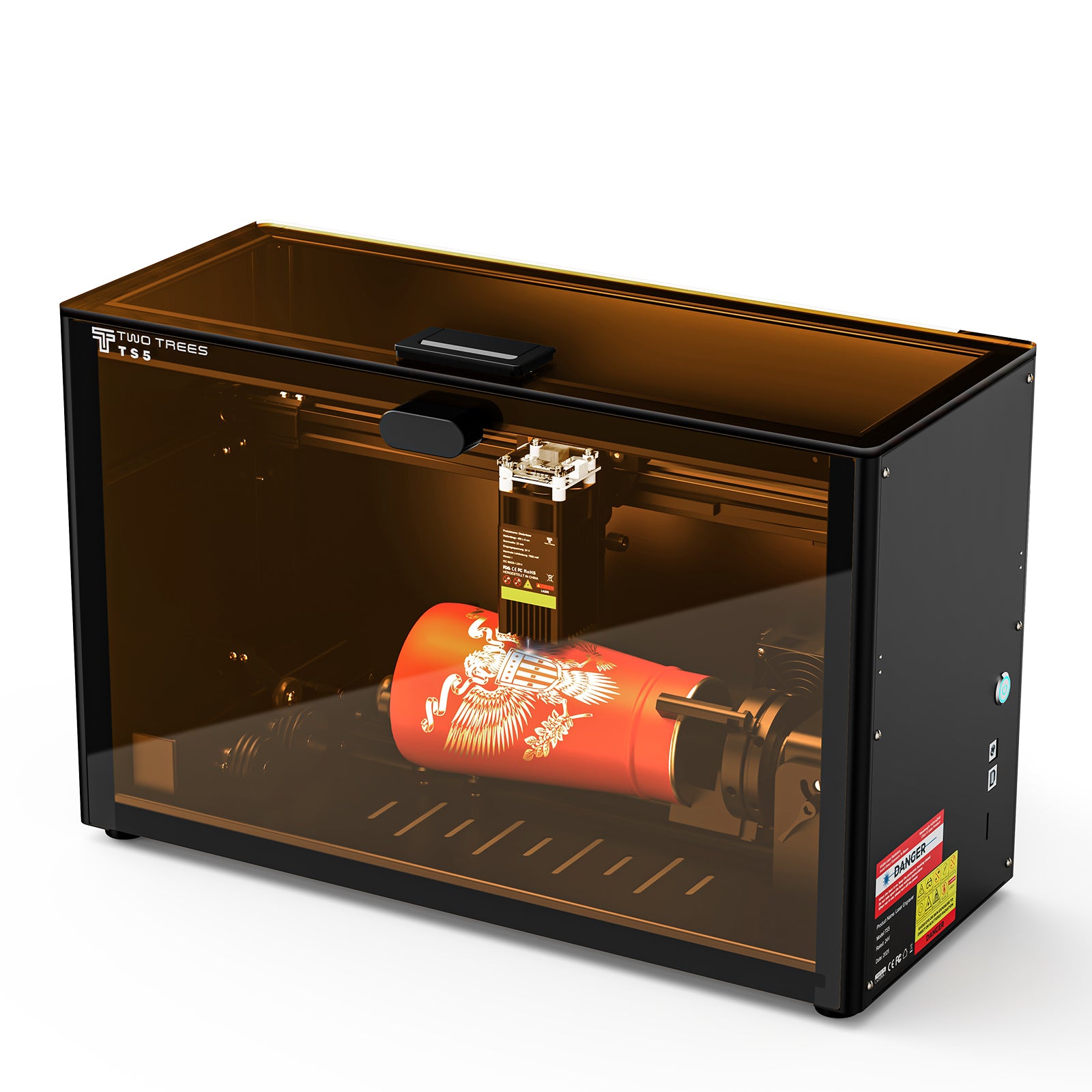

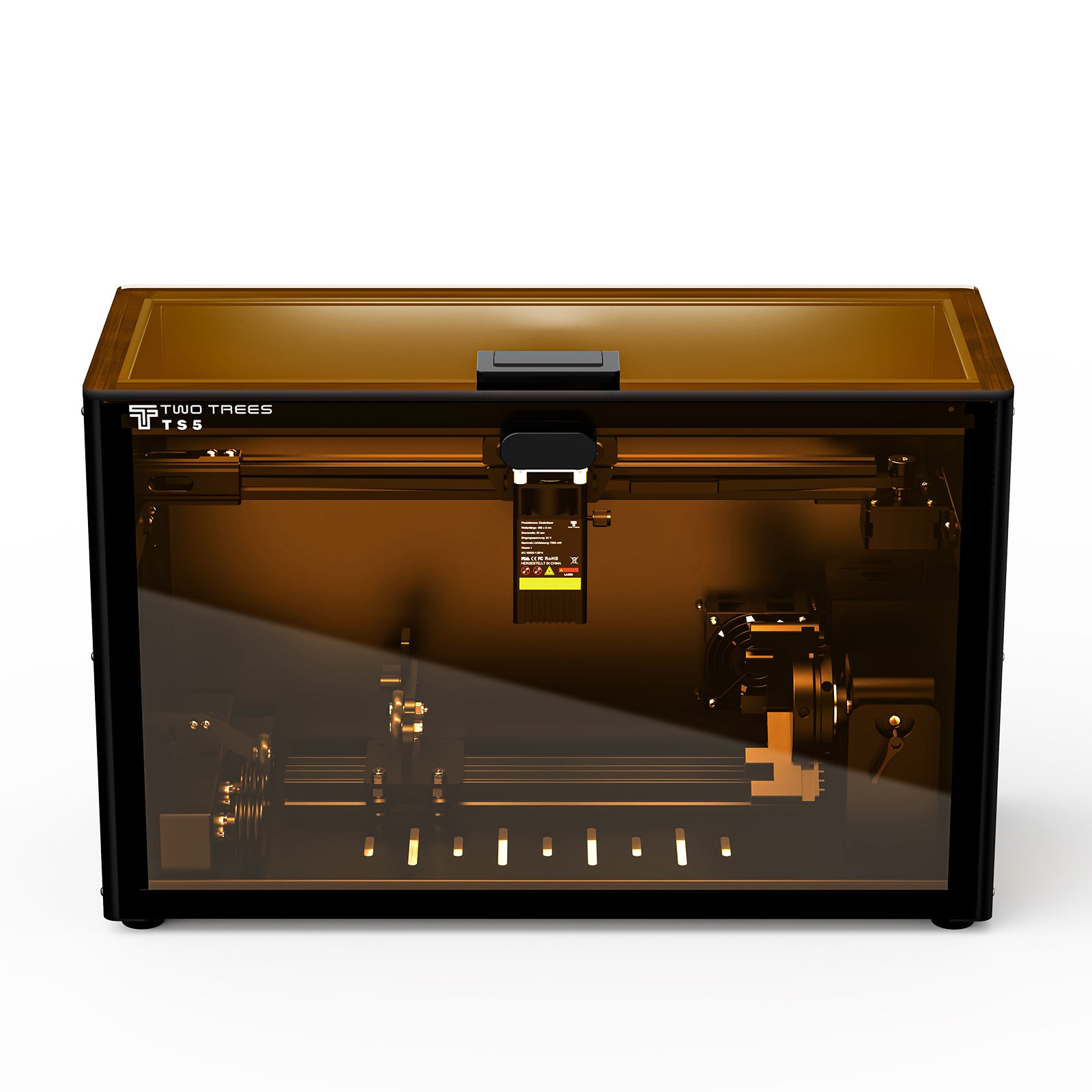

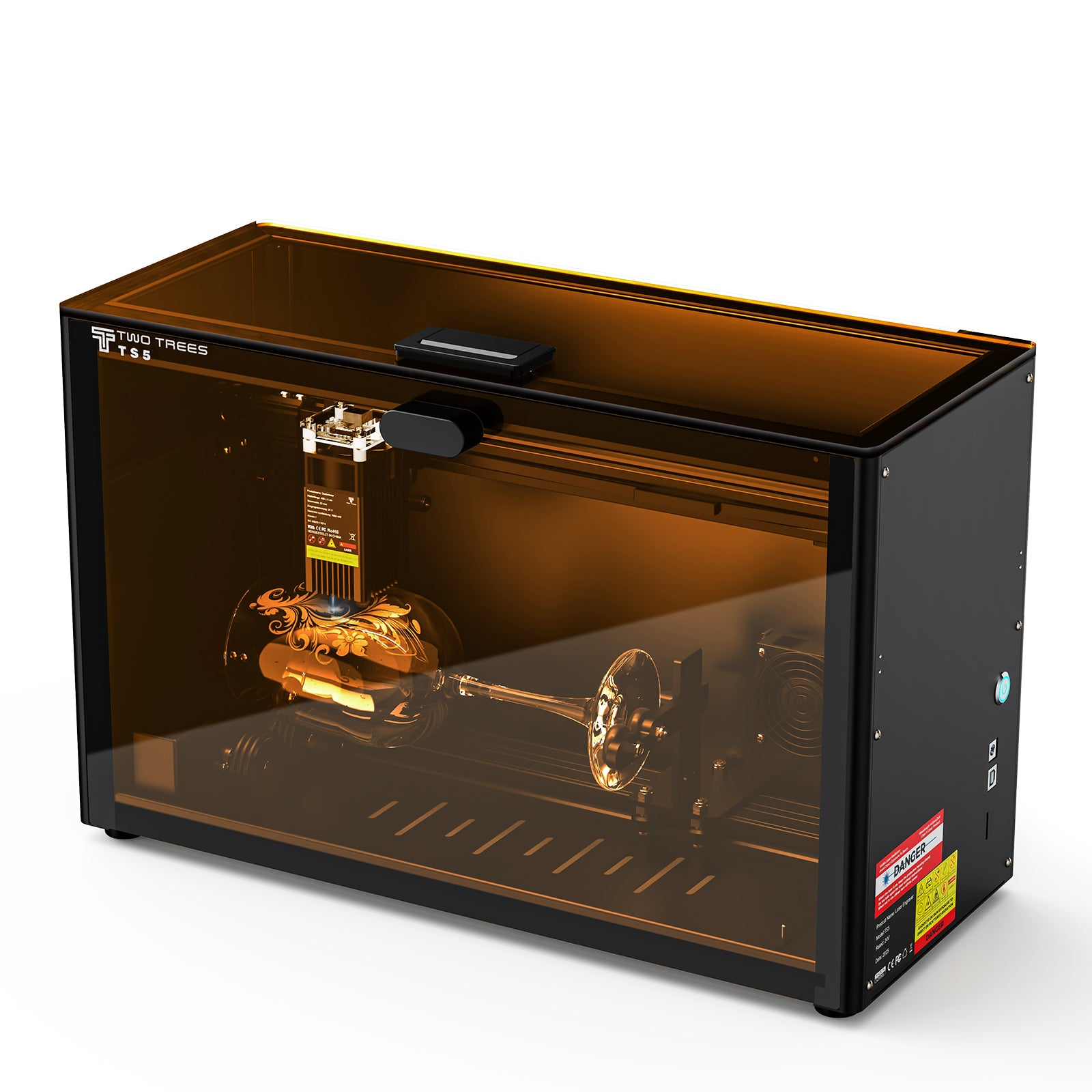

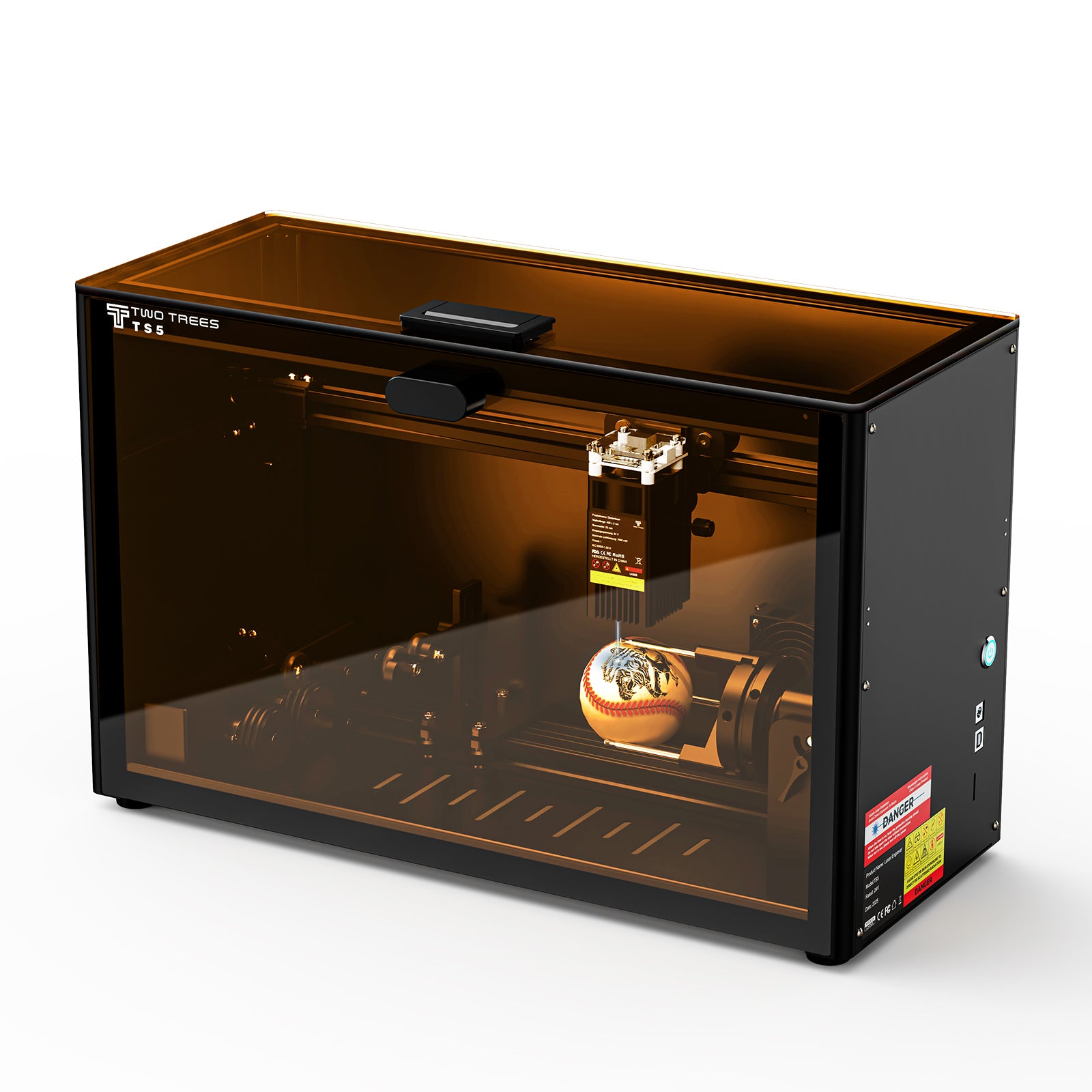

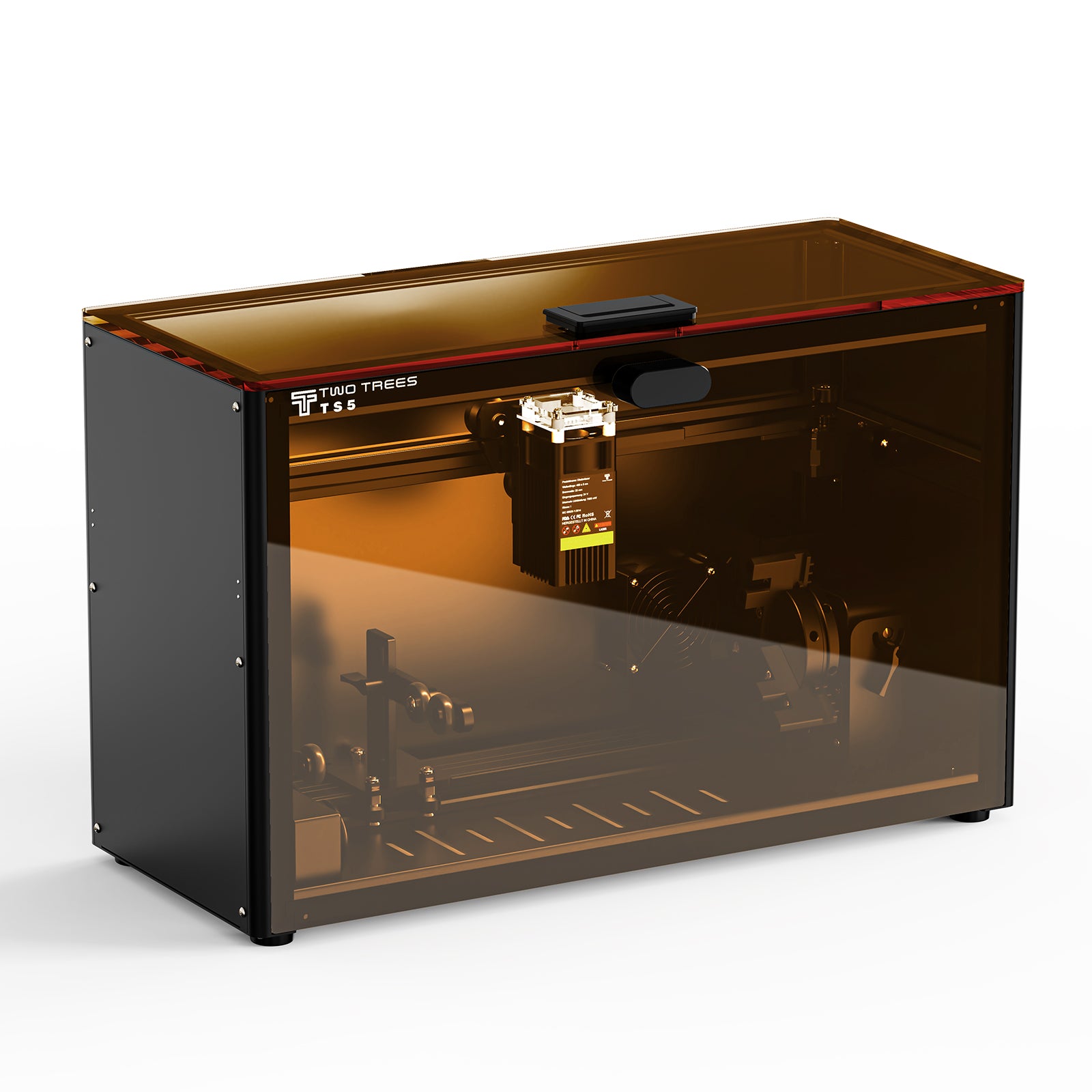

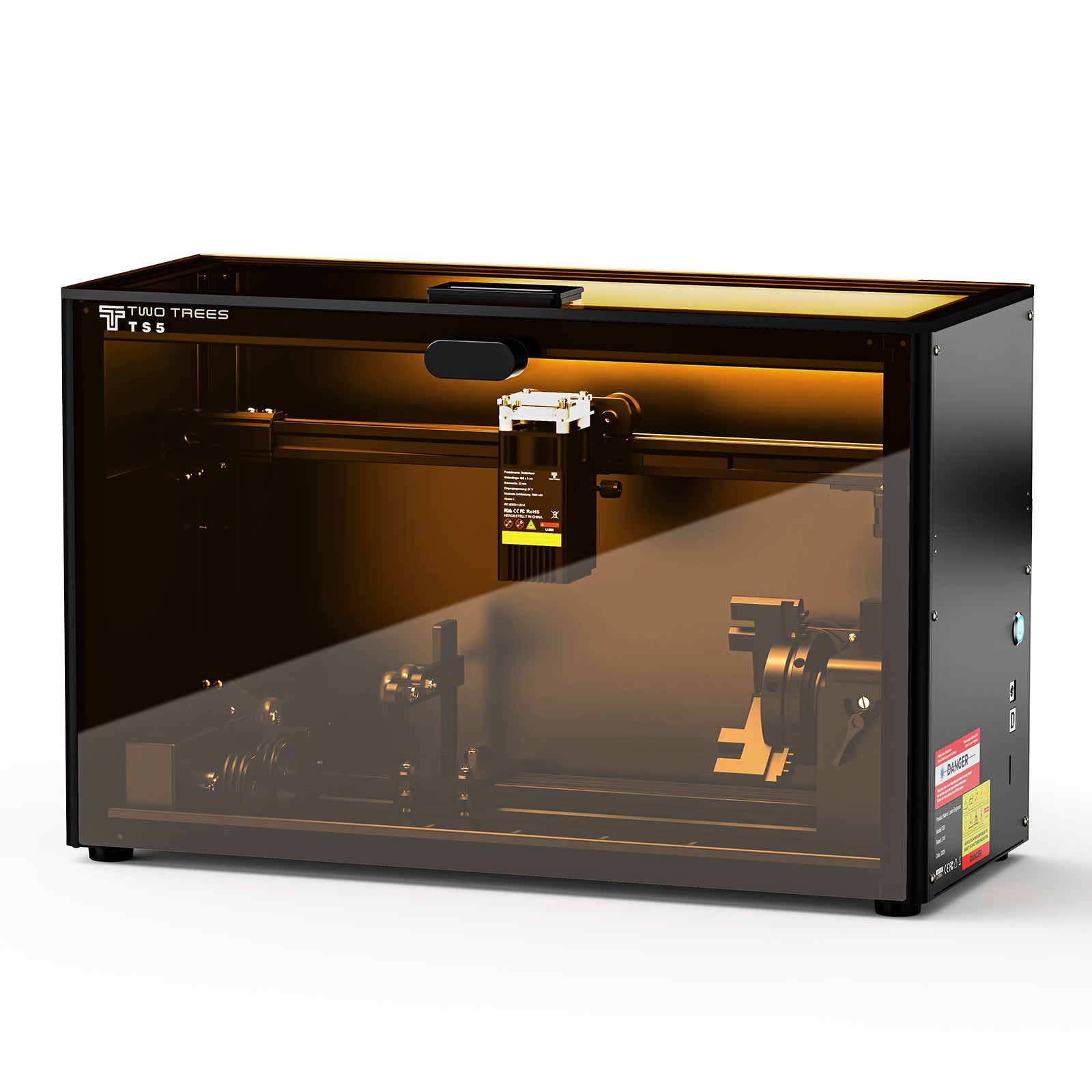

Twotrees TS5-7W Grawer laserowy

1.746,00 zł
1.746,00 zł
Koszt wysyłki obliczony przy realizacji zakupu.
Payment and Discount Info

Limited Time!

Labor Day DlY Sale Save up to 59% OFF

00 d
00 h
00 m
00 s
limited time offer
Typ wtyczki: UE
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Twotrees StoreMaszyna frezująca CNC Twotrees TTC450 PRO + silnik 500W + odkurzacz + frezy końcowe
Twotrees TTC450 PRO CNC Router Machine + 500W Motor + Vacuum Cleaner +End Mills - TwoTrees Official Shop
Twotrees TTC450 PRO CNC Router Machine + TC20 Laser Module + 500W Motor + 4th Axis Module + Vacuum Cleaner +End Mills - TwoTrees Official Shop
Twotrees StoreMaszyna frezująca CNC Twotrees TTC450 PRO + moduł laserowy TC20 + silnik 500W + moduł 4. osi + odkurzacz + frezy końcowe
1.746,00 zł
1.746,00 zł

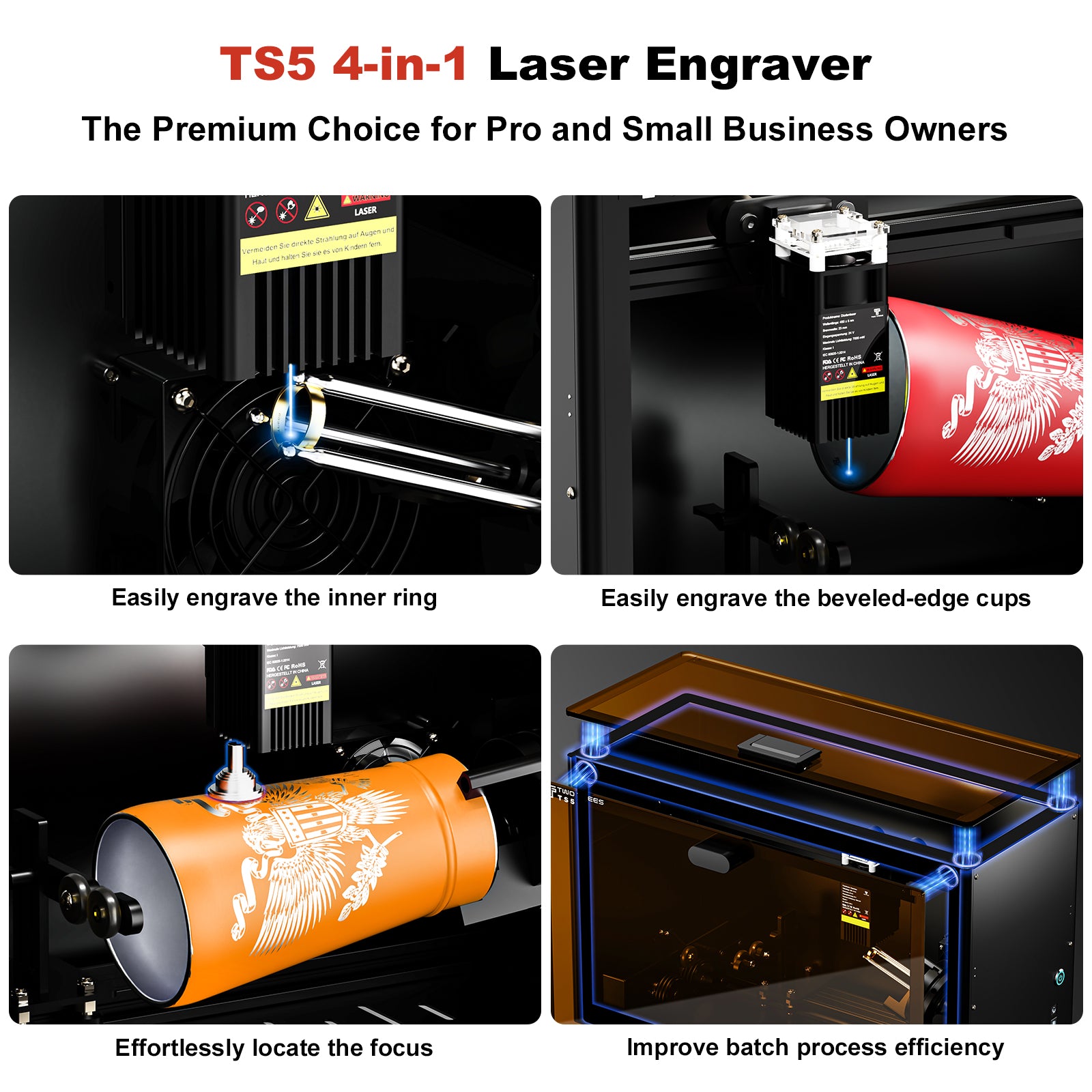

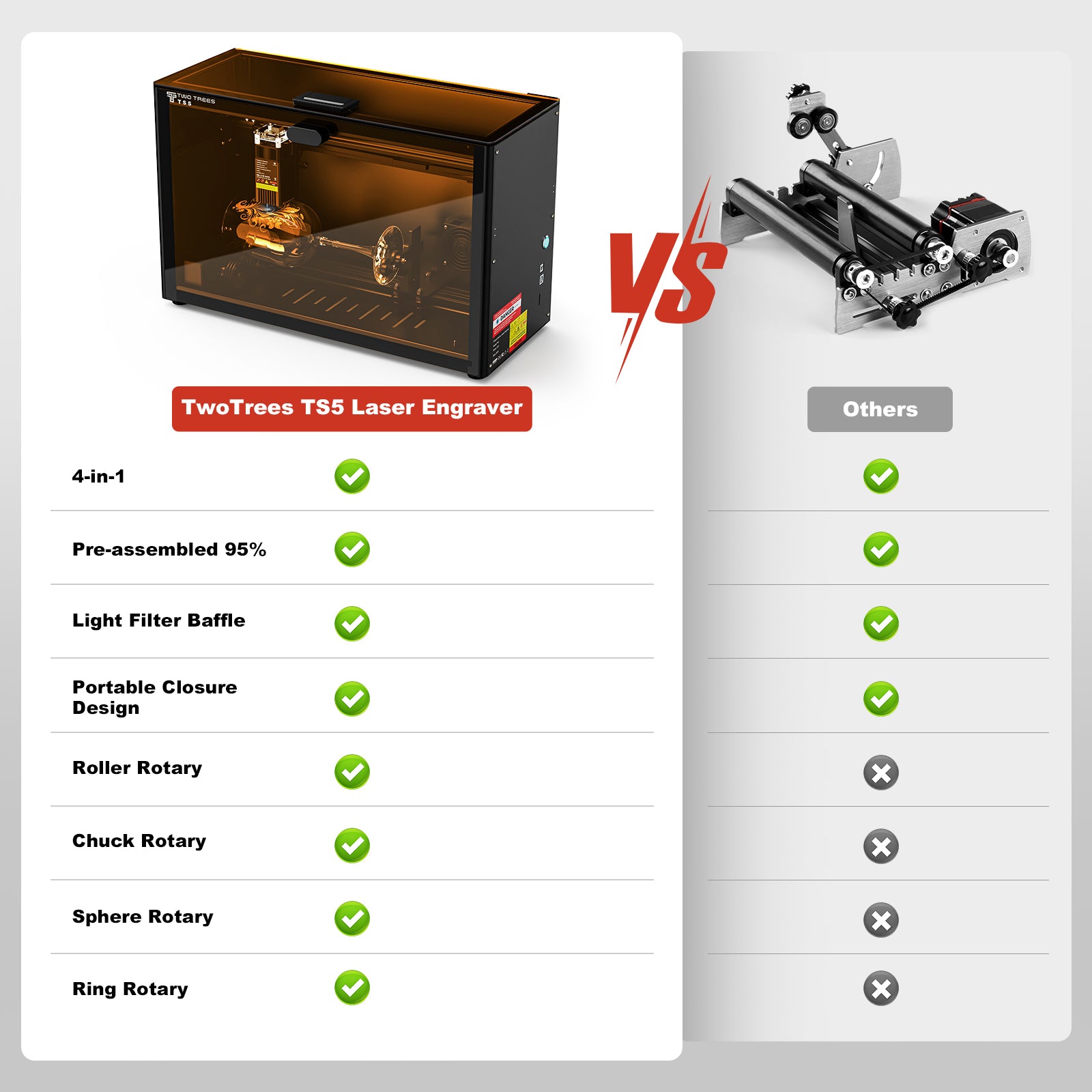

Funkcje, które wyróżniają TS5

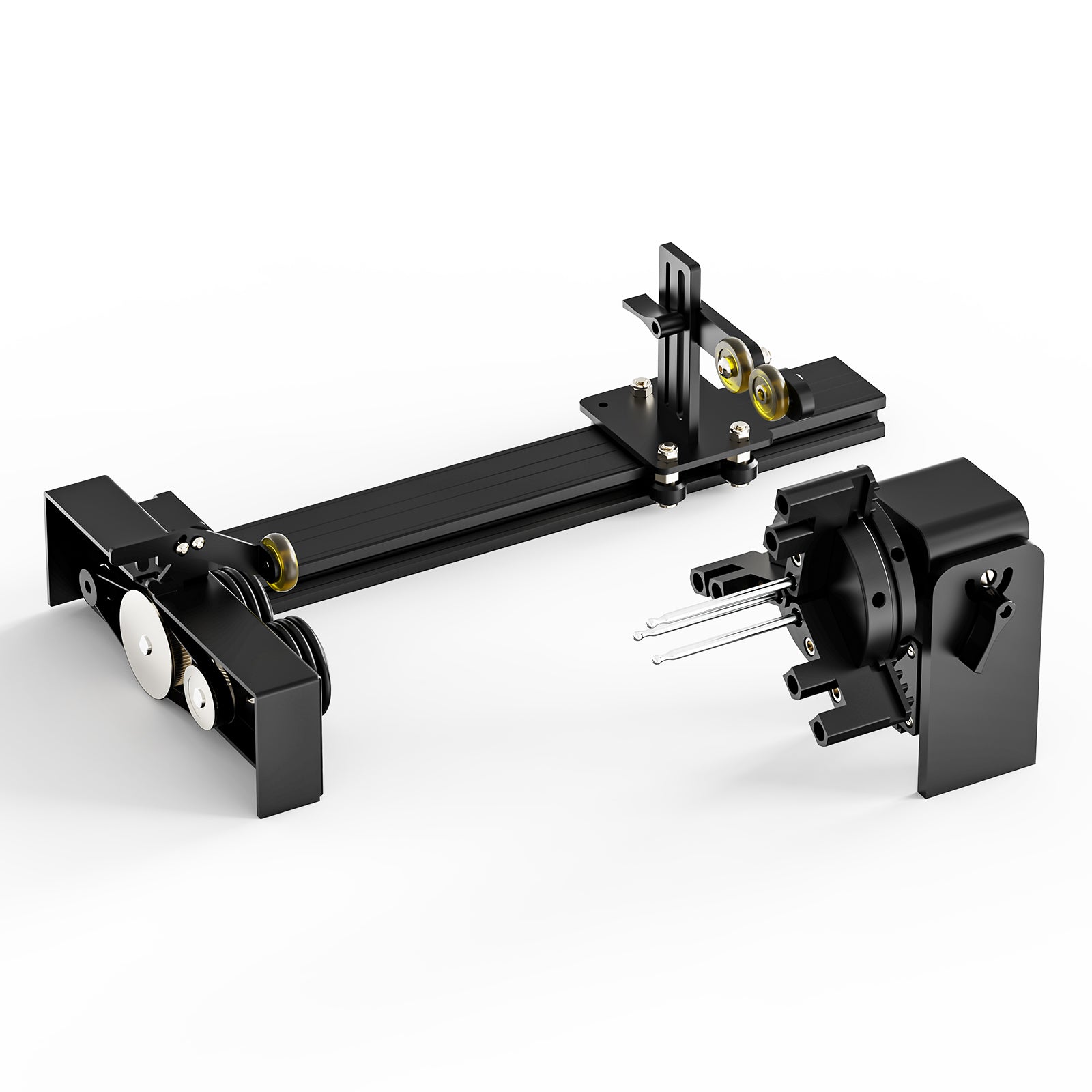

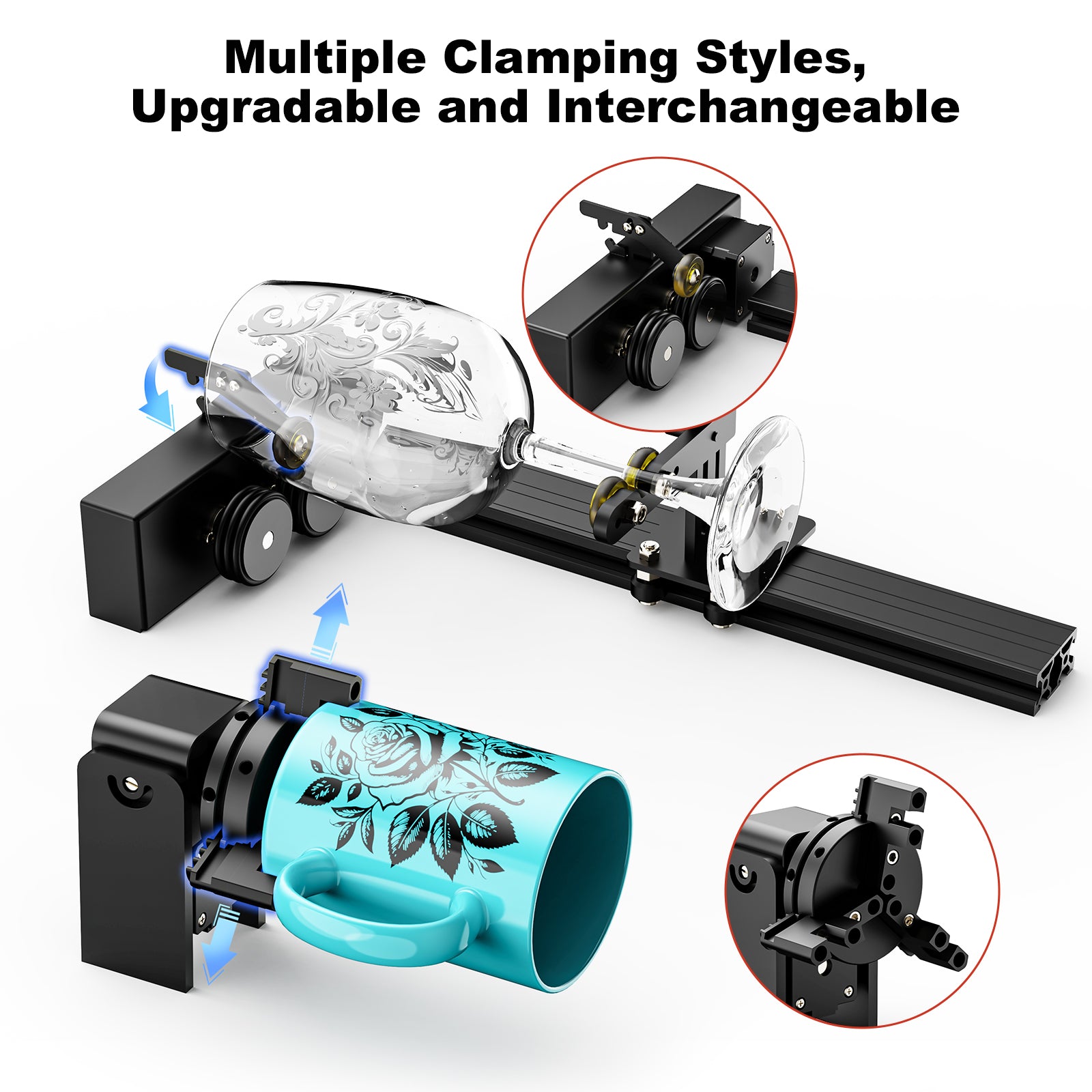

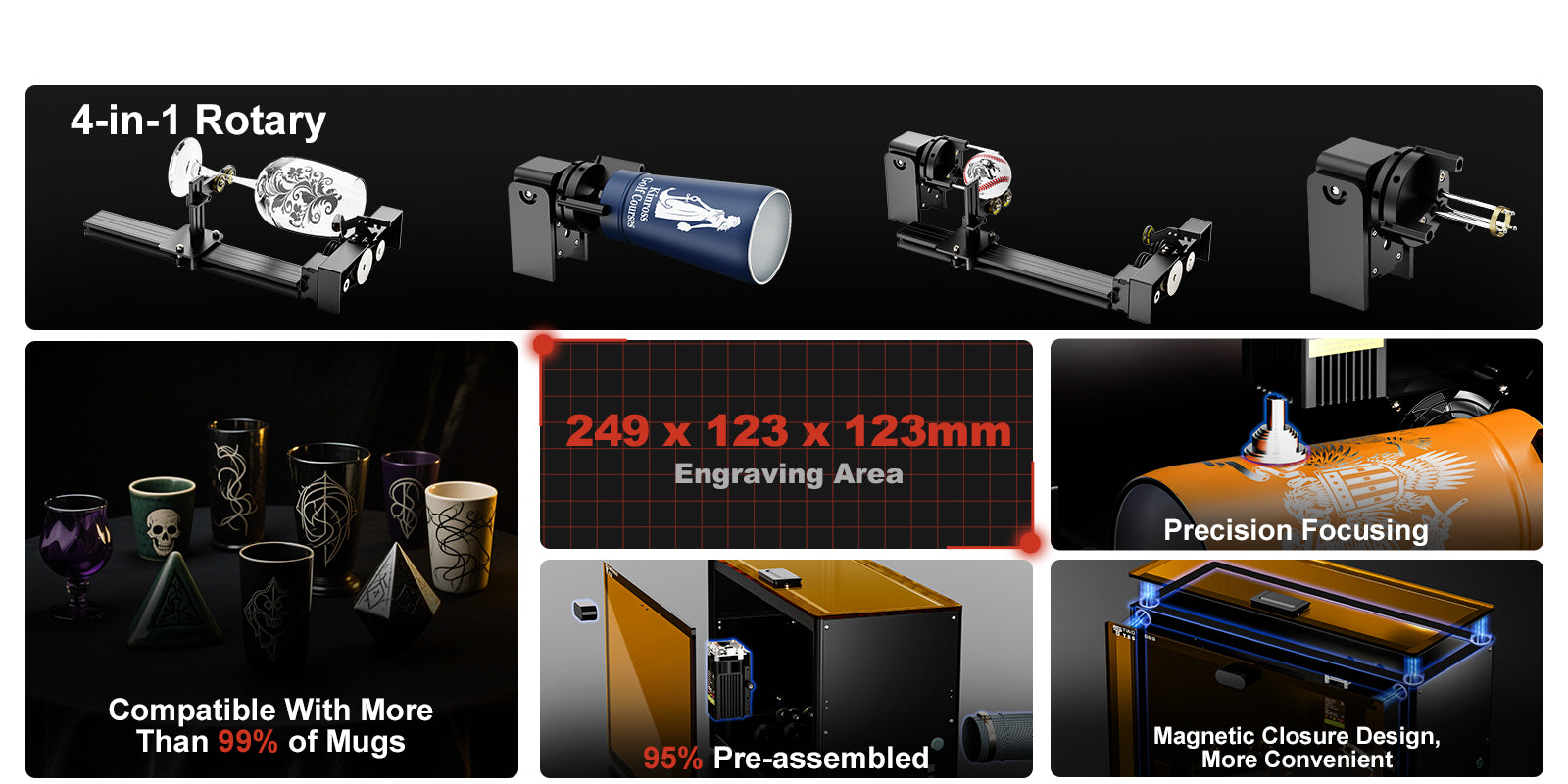

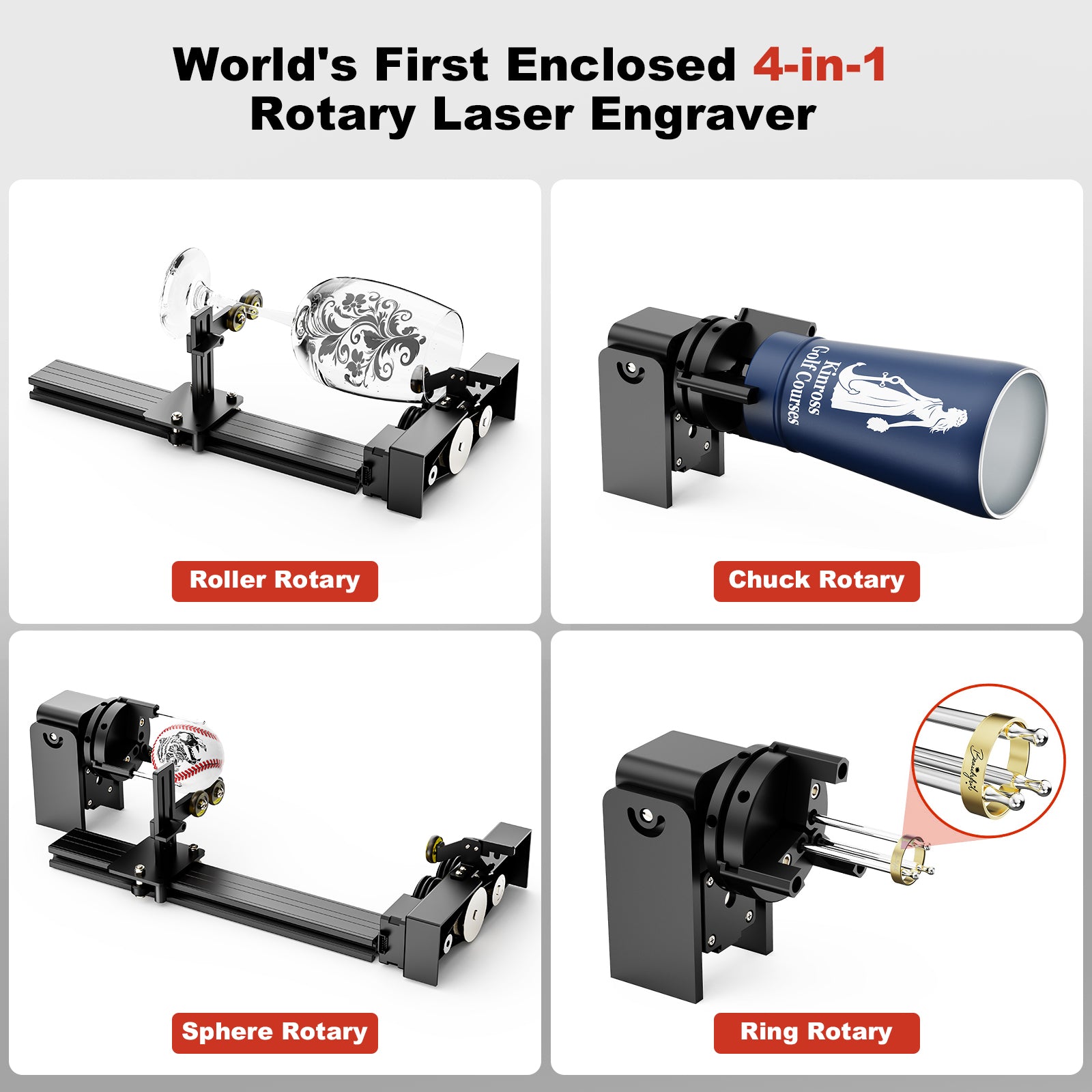

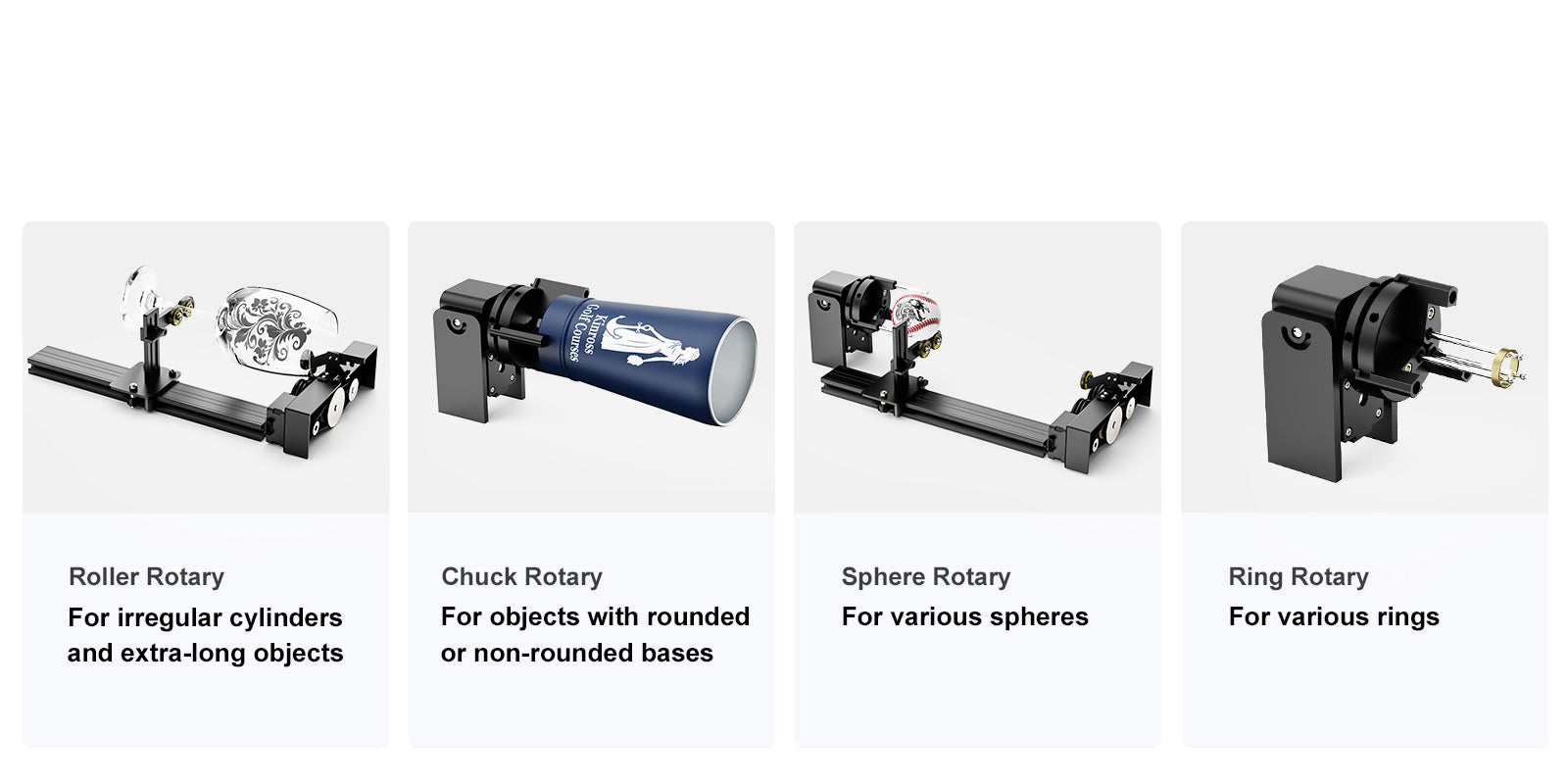

Wiele stylów zaciskania, możliwe do rozbudowy i wymienne

Przełomowa, Ostateczna Kreatywność

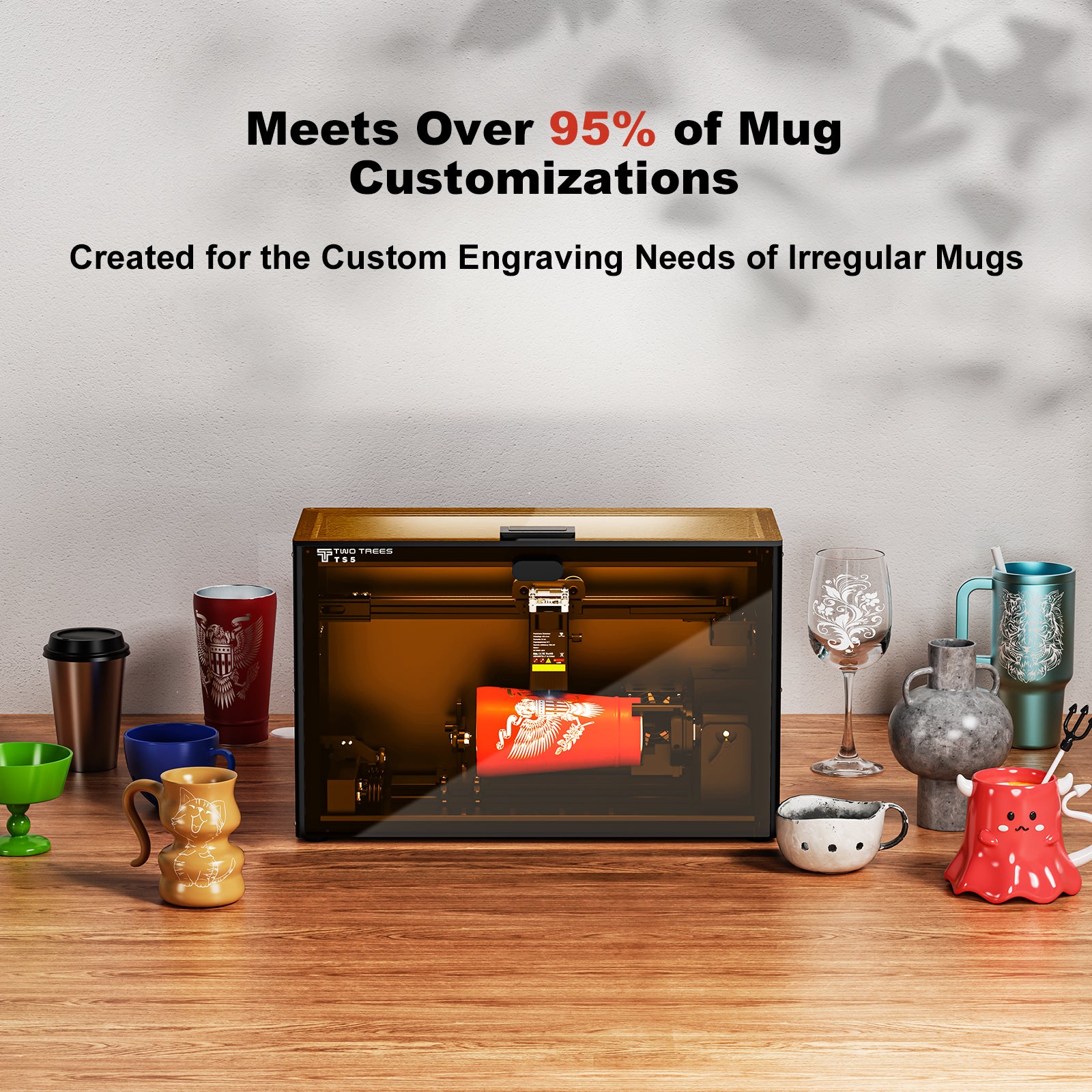

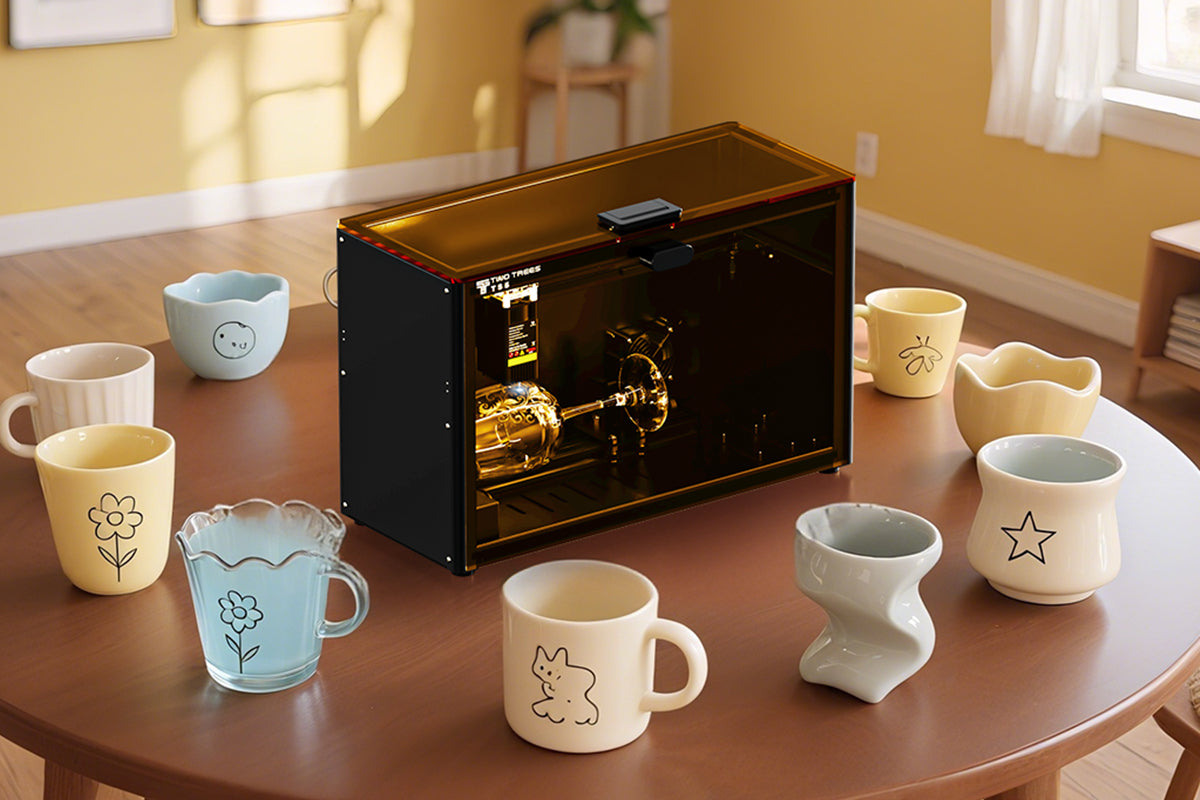

Rozwiązuje 99% problemów z grawerowaniem kubków na rynku

Discover What's New

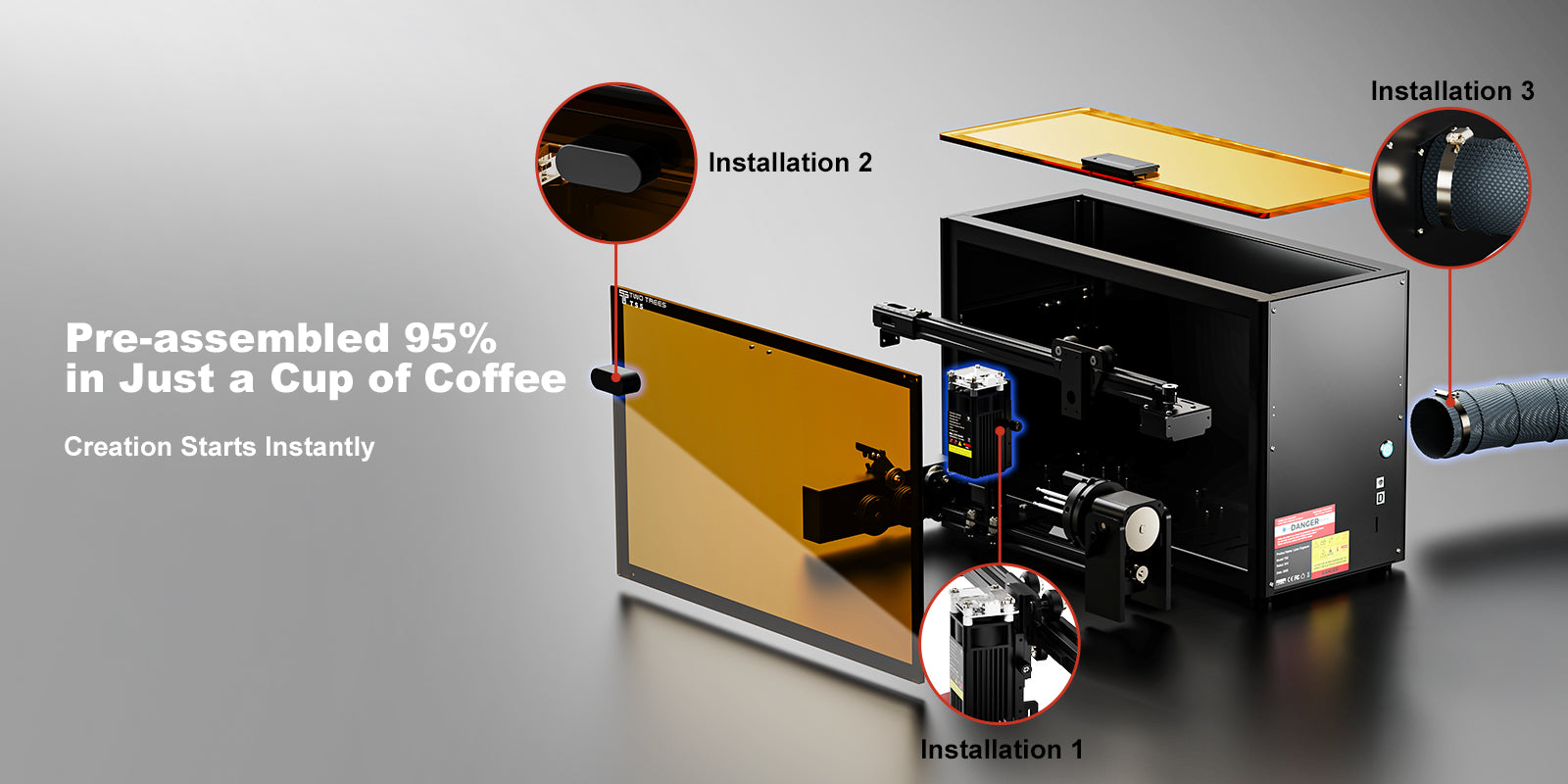

Pre-assembled 95%

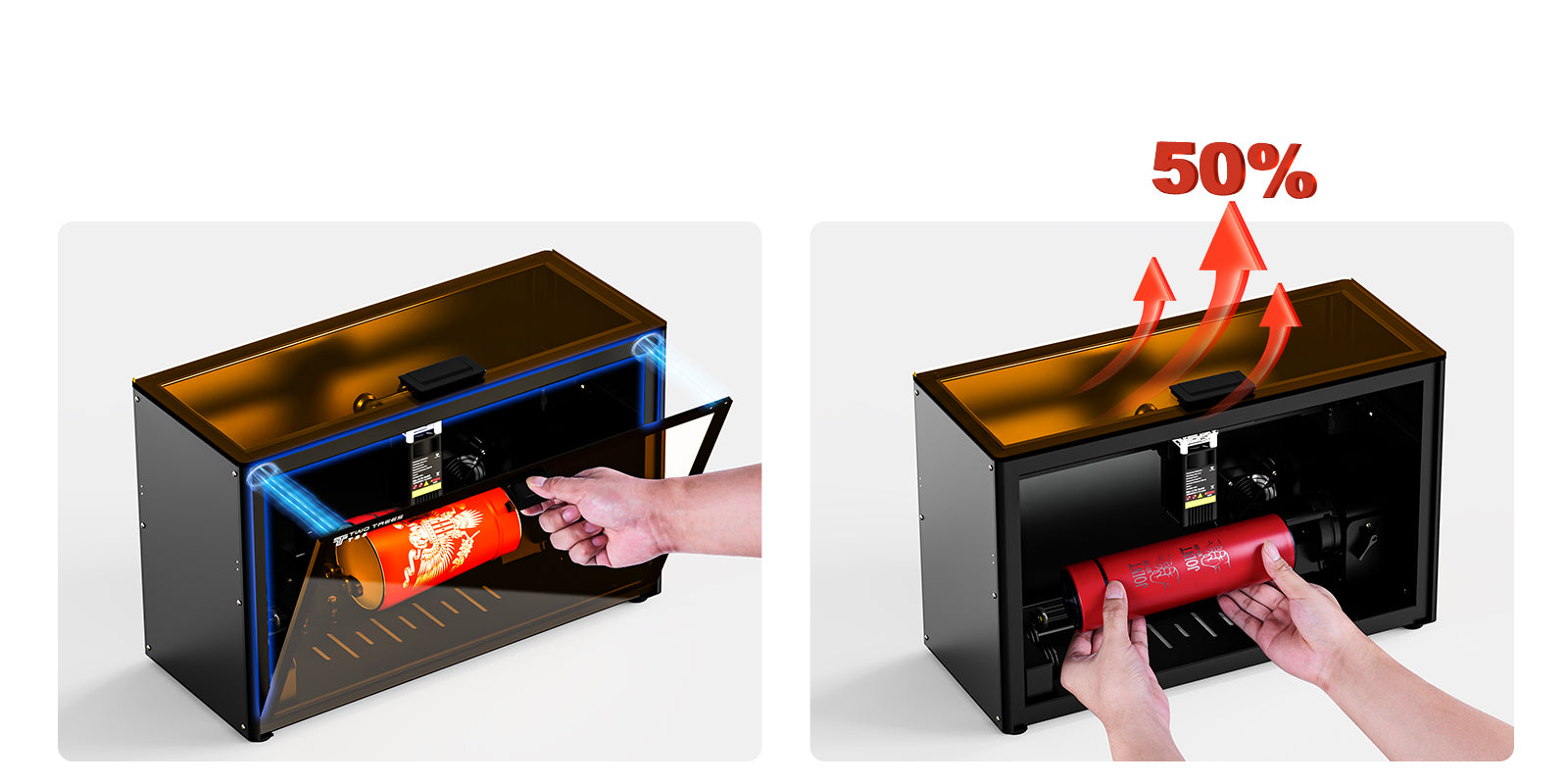

Magnetic Closure Design

Safety and Eye Protection

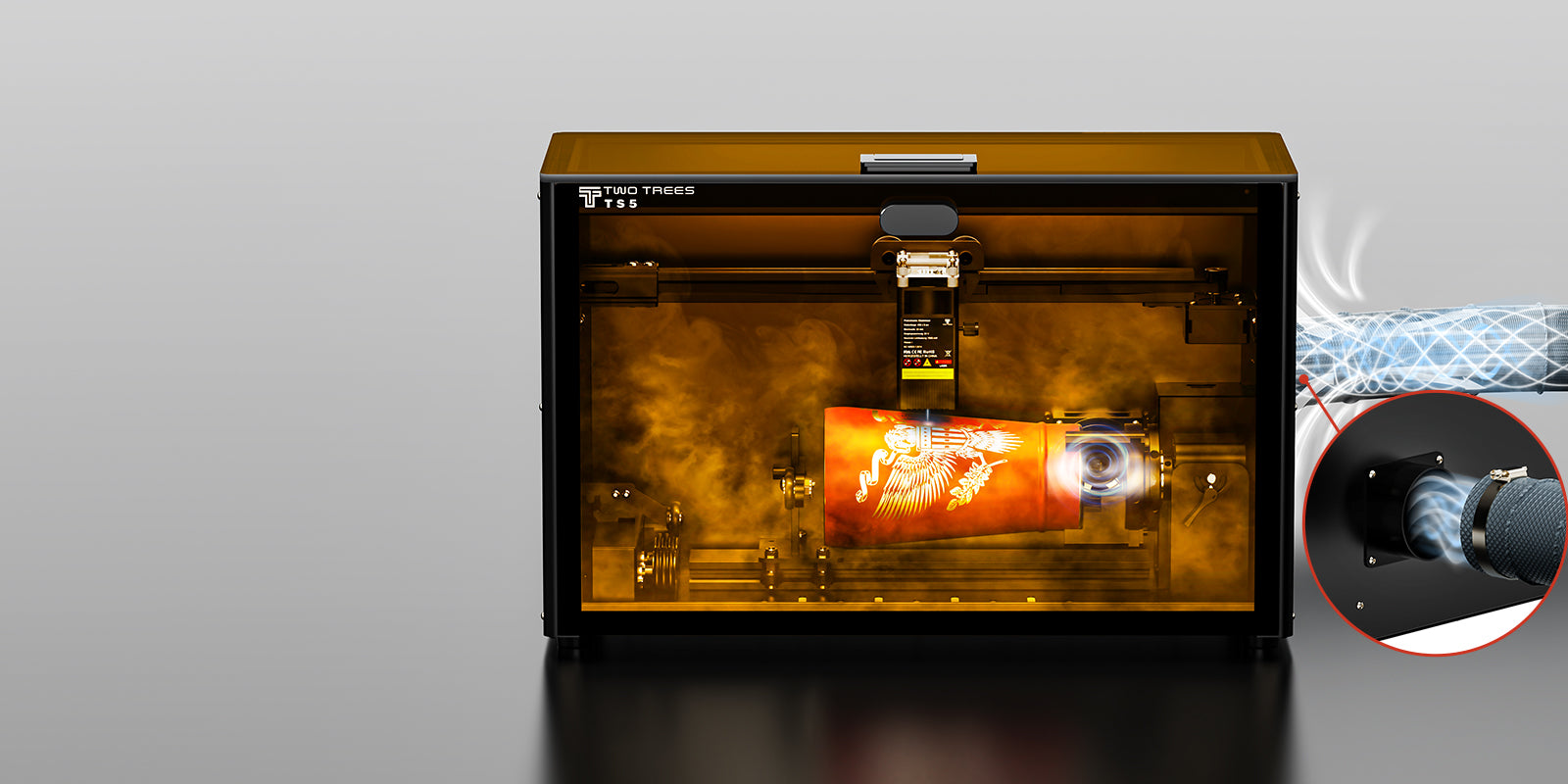

Dust and Smoke Exhaust

Compatible With Mainstream Software

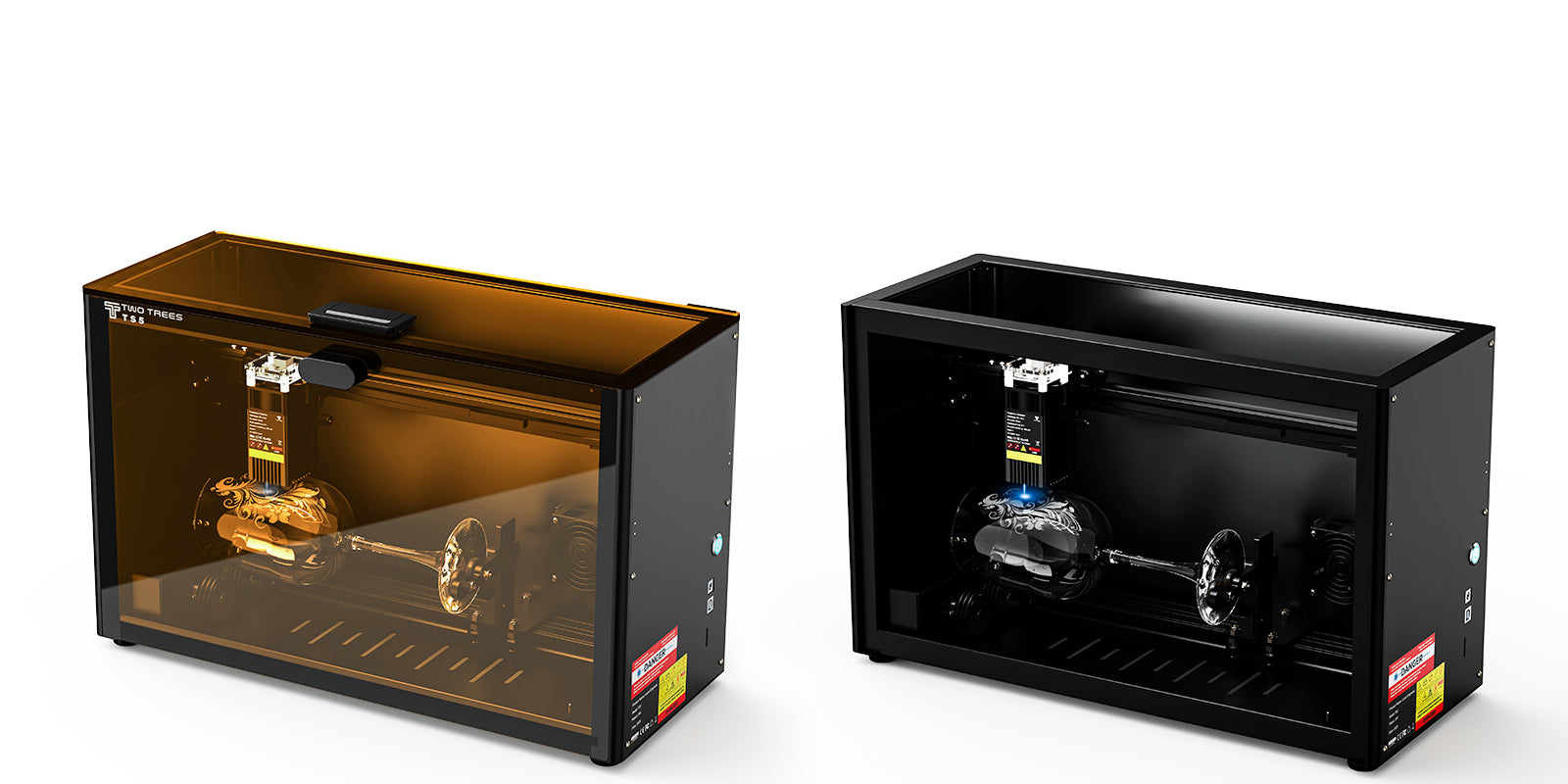

Special Filtering Material to Effectively Block Harmful Blue Li

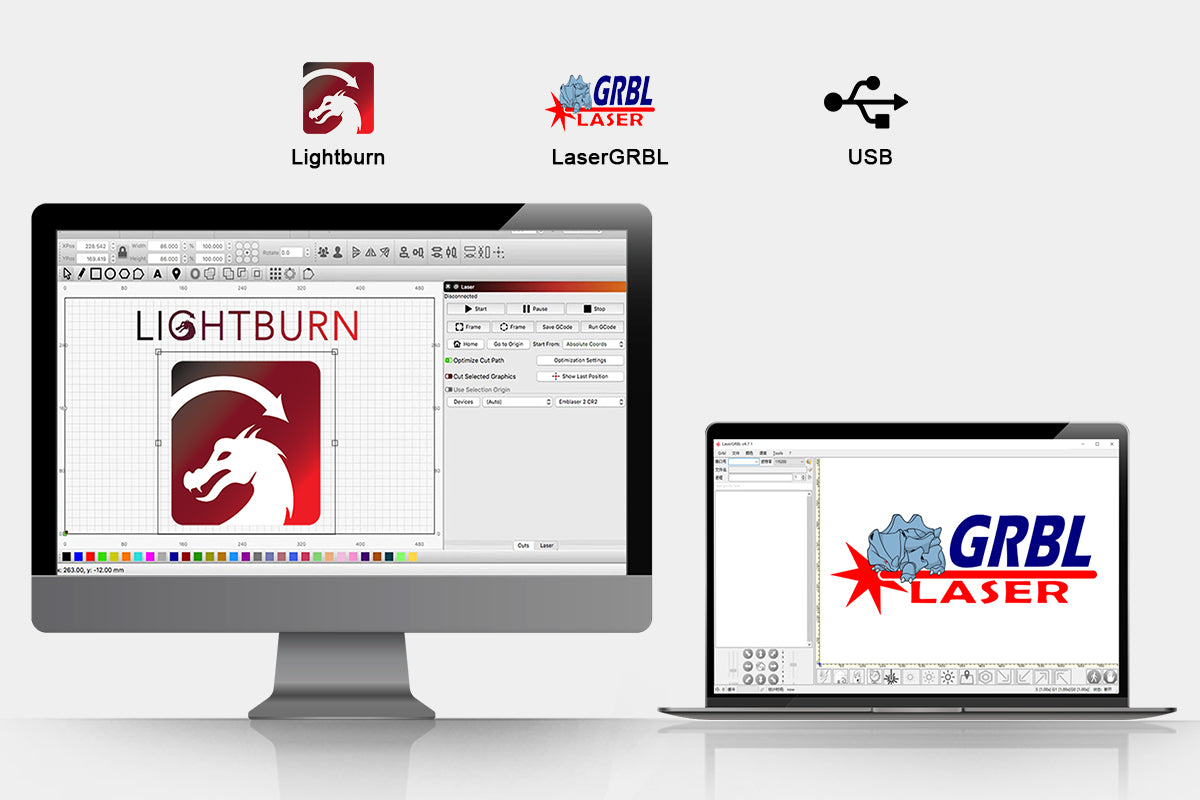

Unleash Software Flexibility

Satisfy all Your Creativity From Start to Advanced,Compatible with Lightburn and so on

Product

Specifications

Main material

Aluminum + High Carbon Steel

Net weight

9.13 kg

Gross weight

10.55 kg

Chuck external clamping range

Ø26 – Ø140 mm

Chuck internal clamping range

Ø15 – Ø110 mm

Chuck tilt adjustment angle

-8° to +8°

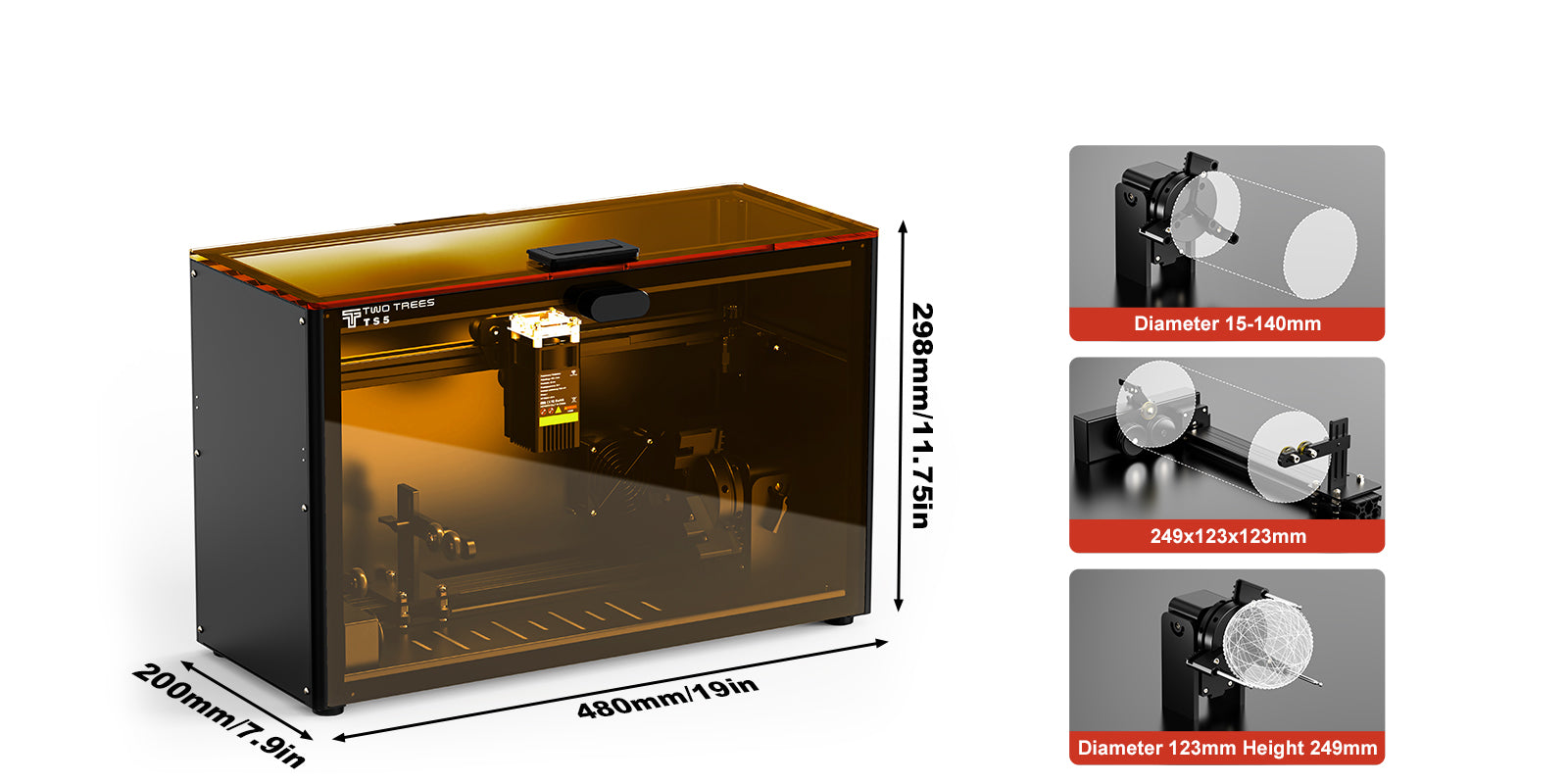

Product dimensions

480 × 200 × 298 mm

Working area

249 × 123 × 123 mm

Package dimensions

553 × 280 × 387 mm

Input voltage

100-240V~50/60Hz

Output voltage

24V

Laser power

7W

Overall power

60W

Wavelength

450 ± 5 nm

Spot size

0.035 × 0.1 mm

Supported

TF Storage Card,USB Port,Wi-Fi
Return to Origin After Engraving,Motion Control,Laser Power Adjustment,External Exhaust Interface

Not supported

Bluetooth, Limit Homing,Power-Off Resume

Optional

Gas Assist, Screen Control

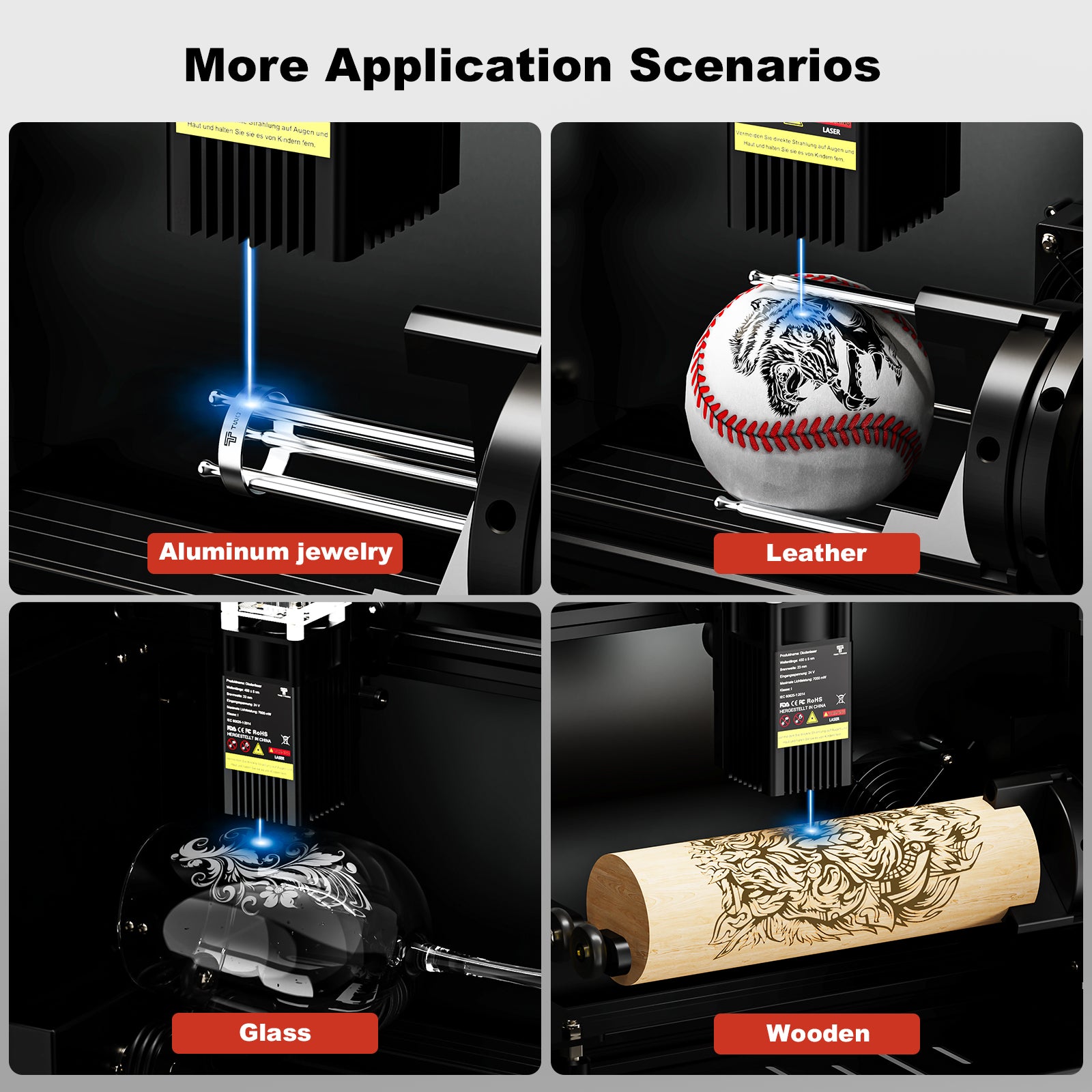

Engraving materials

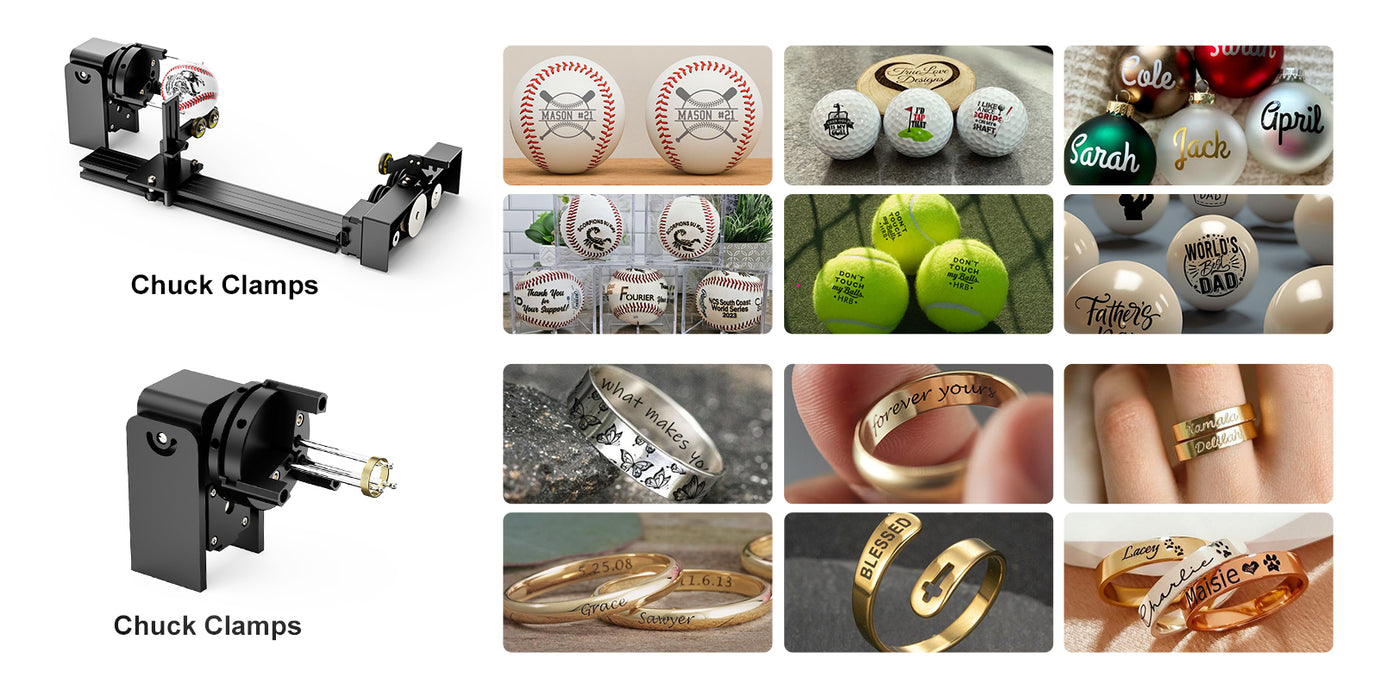

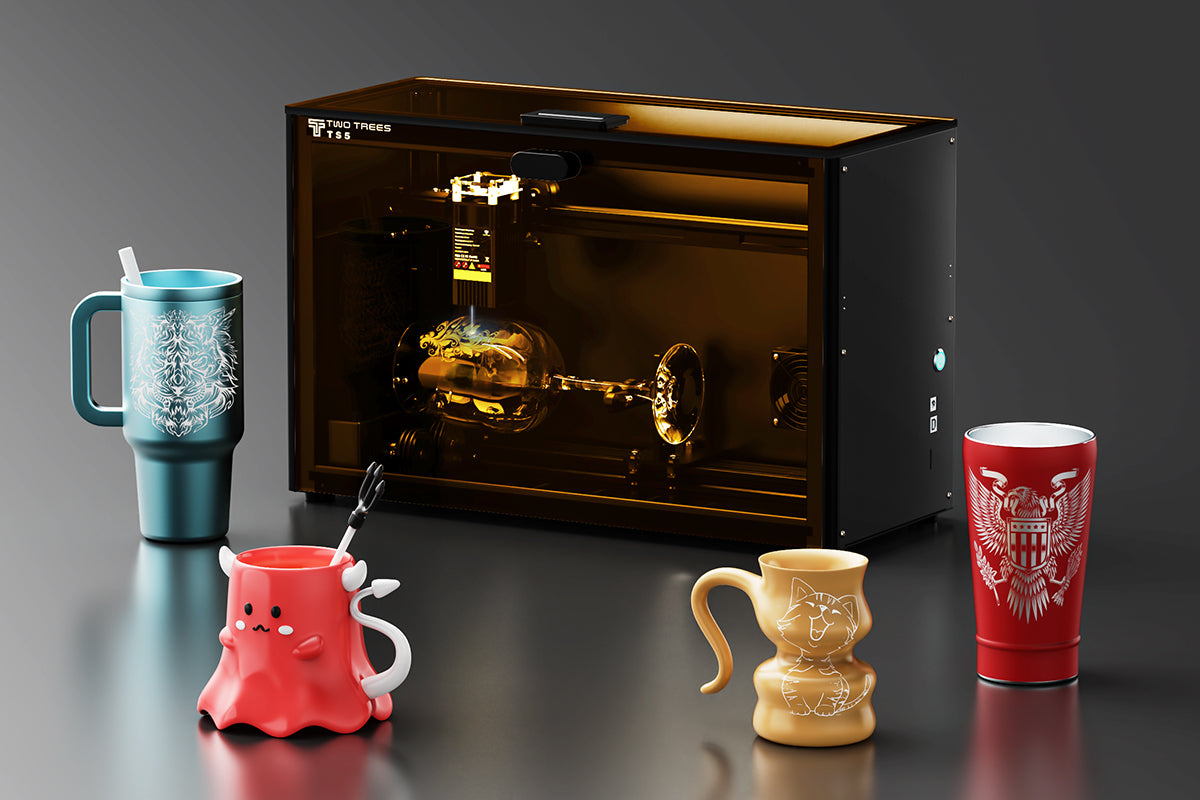

Mugs,Wine Glasses,Stainless Steel,Rings

Motion structure

XY dual-axis

X/y axis positioning accuracy

0.1mm

Maximum speed

10,000 mm/min

Engraving software

LaserGRBL(Windows), LightBurn(Common)

Supported operating systems

macOS / Windows / Linux

Software languages

Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, etc.

Supported software formats

lbrn,BMP,JPG,PNG,GCODE

Engraving file format

.nc

Safety certifications

CE\FCC\ROHS CE-EMC, CE-LVD, CE-RED, CE-MD, EN60825-1,EN60825-4, ROHS, IEC60825, FCC-Sdoc, FCC-ID, FDA

Operating temperature

5℃ ~ 40℃

Operating humidity

20% ~ 60% RH
