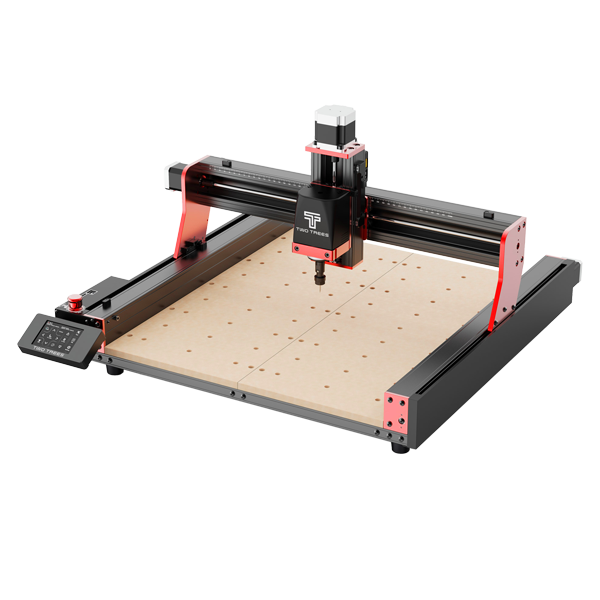

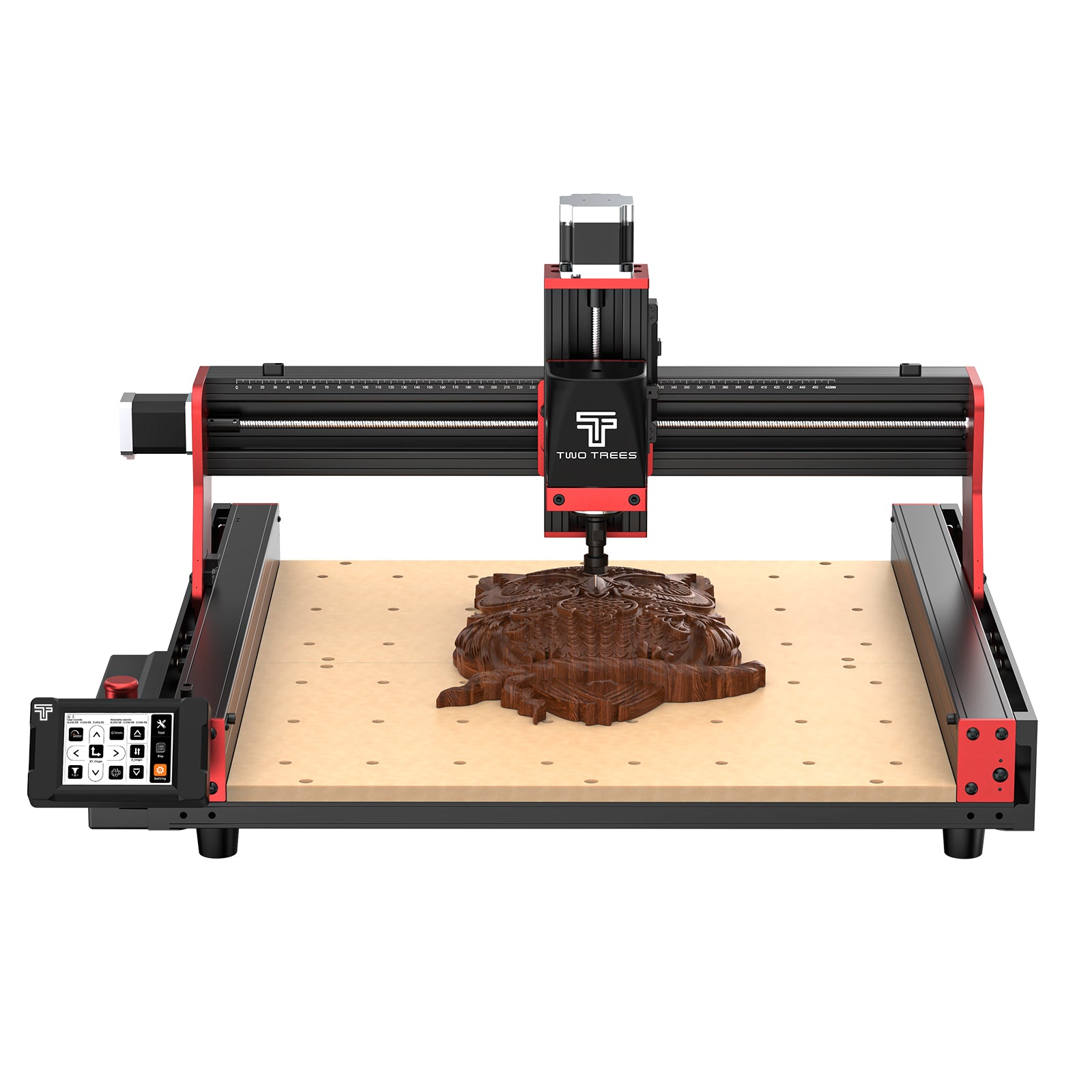

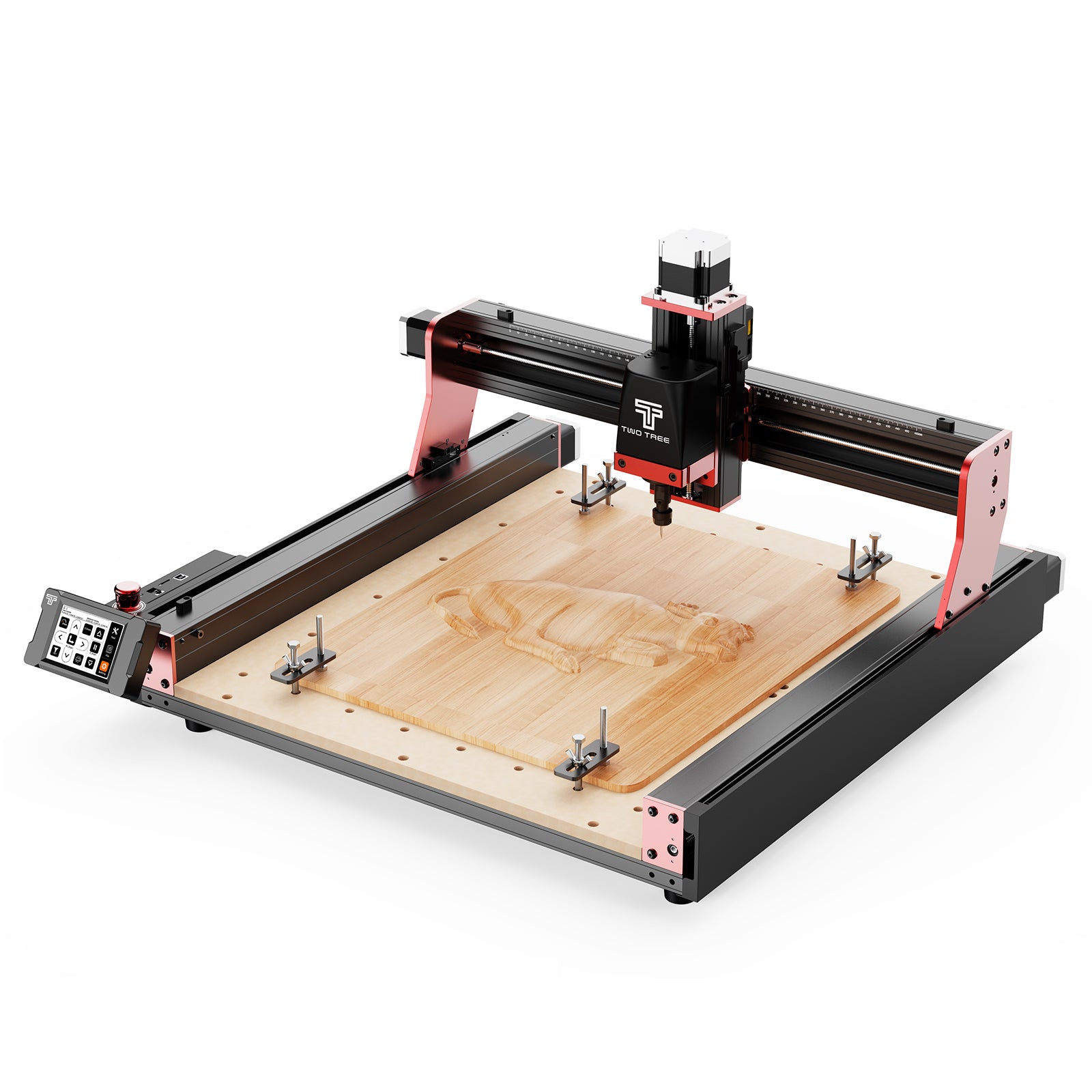

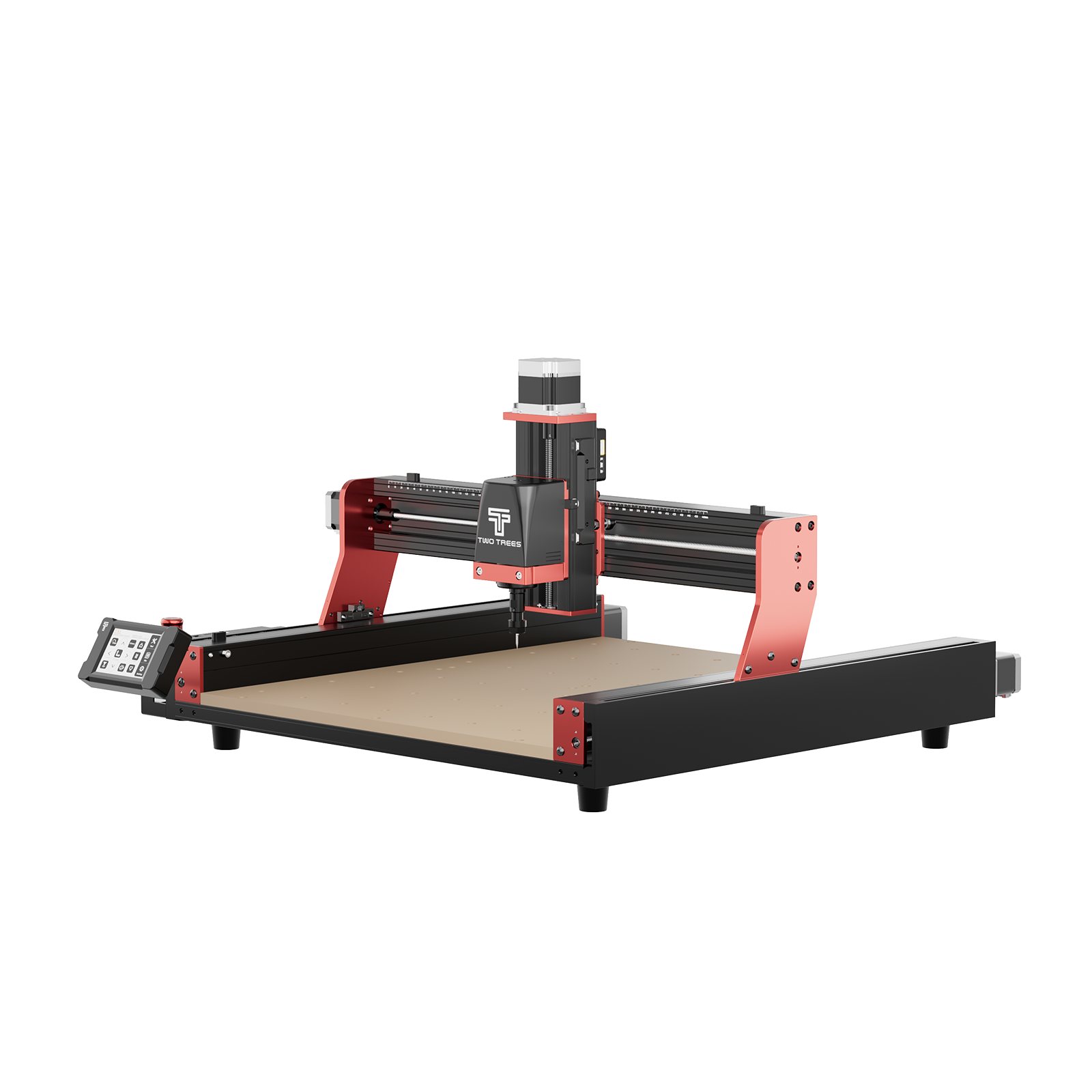

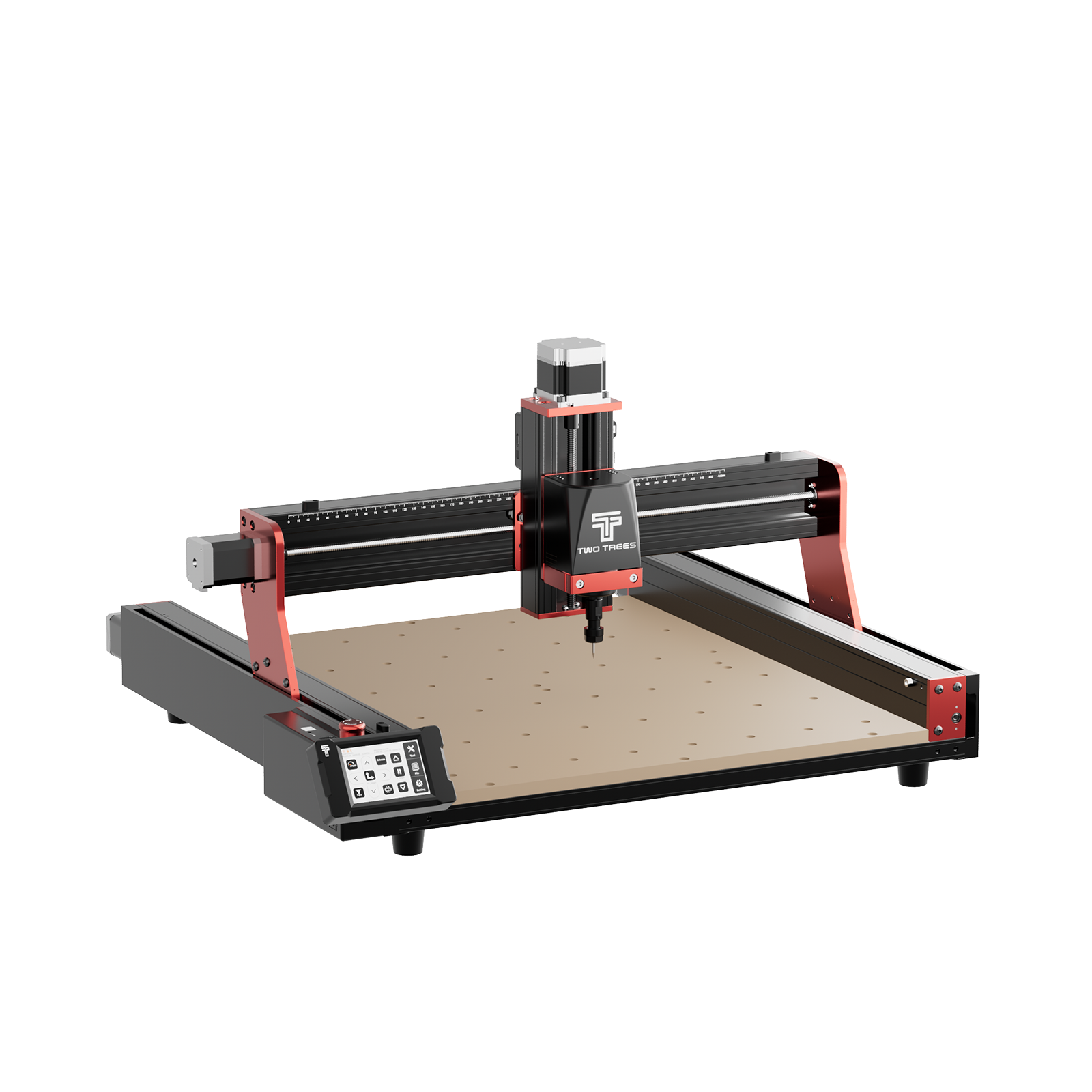

Twotrees TTC450 PRO CNC Router Maszyna (Bezpośrednia wysyłka z UE i USA, VAT wliczony)
Cena regularna
2.152,00 zł
Cena regularna
Cena sprzedaży
2.152,00 zł
Cena jednostkowa
na
Koszt wysyłki obliczony przy realizacji zakupu.
Nie można załadować gotowości do odbioru
Cena regularna
2.152,00 zł
Cena regularna
Cena sprzedaży
2.152,00 zł

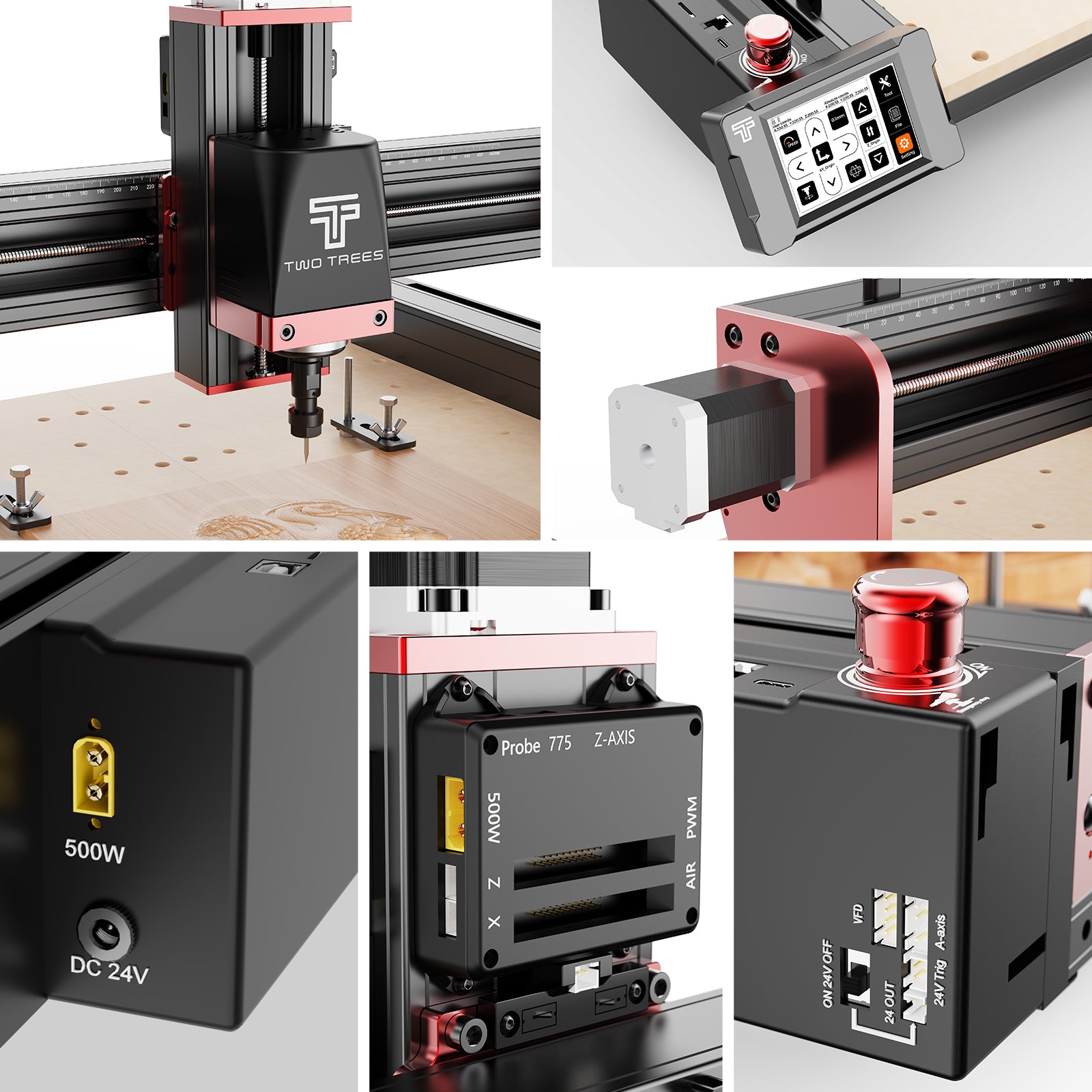

Najważniejsze cechy TTC450 Pro
Precyzja, Moc i Trwałość

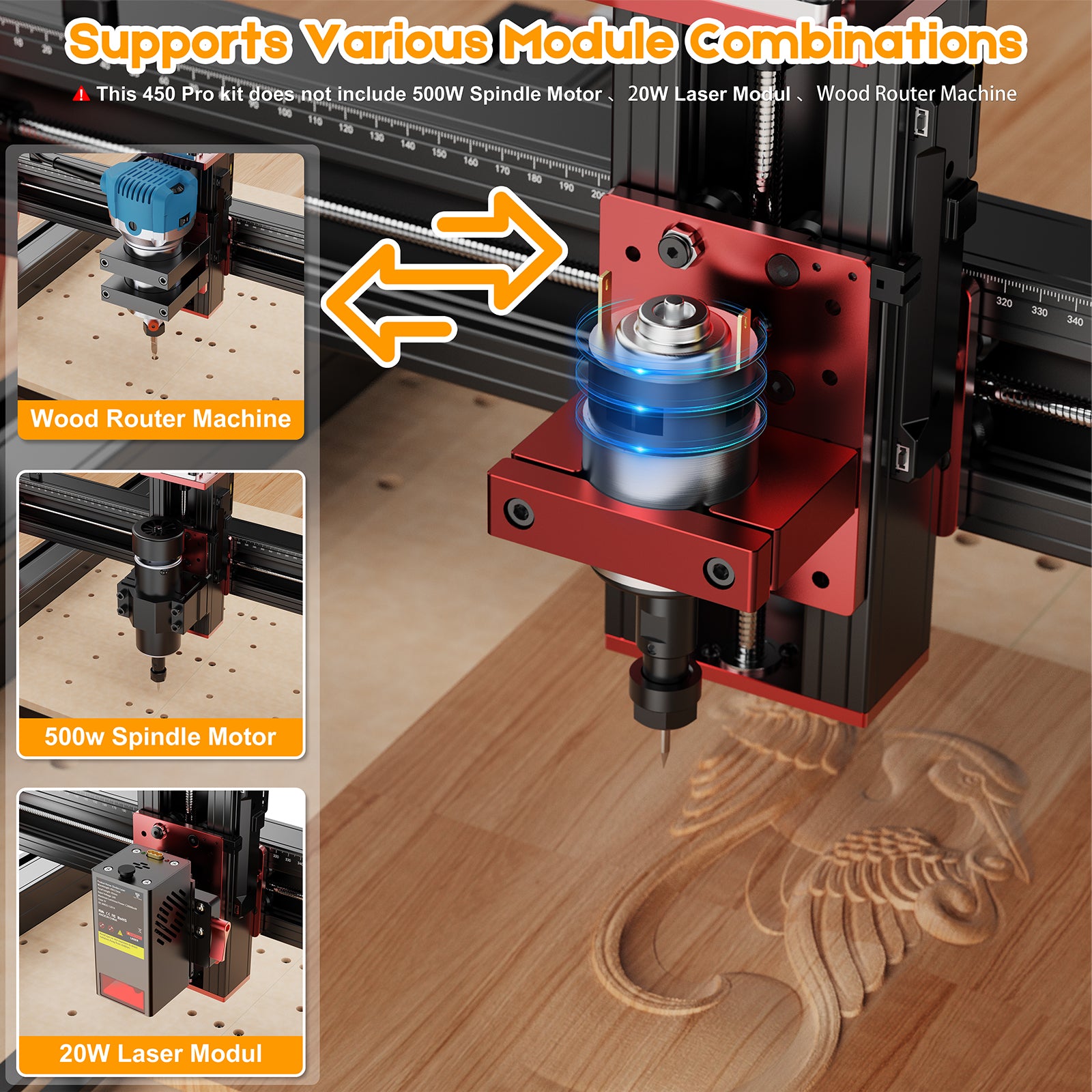

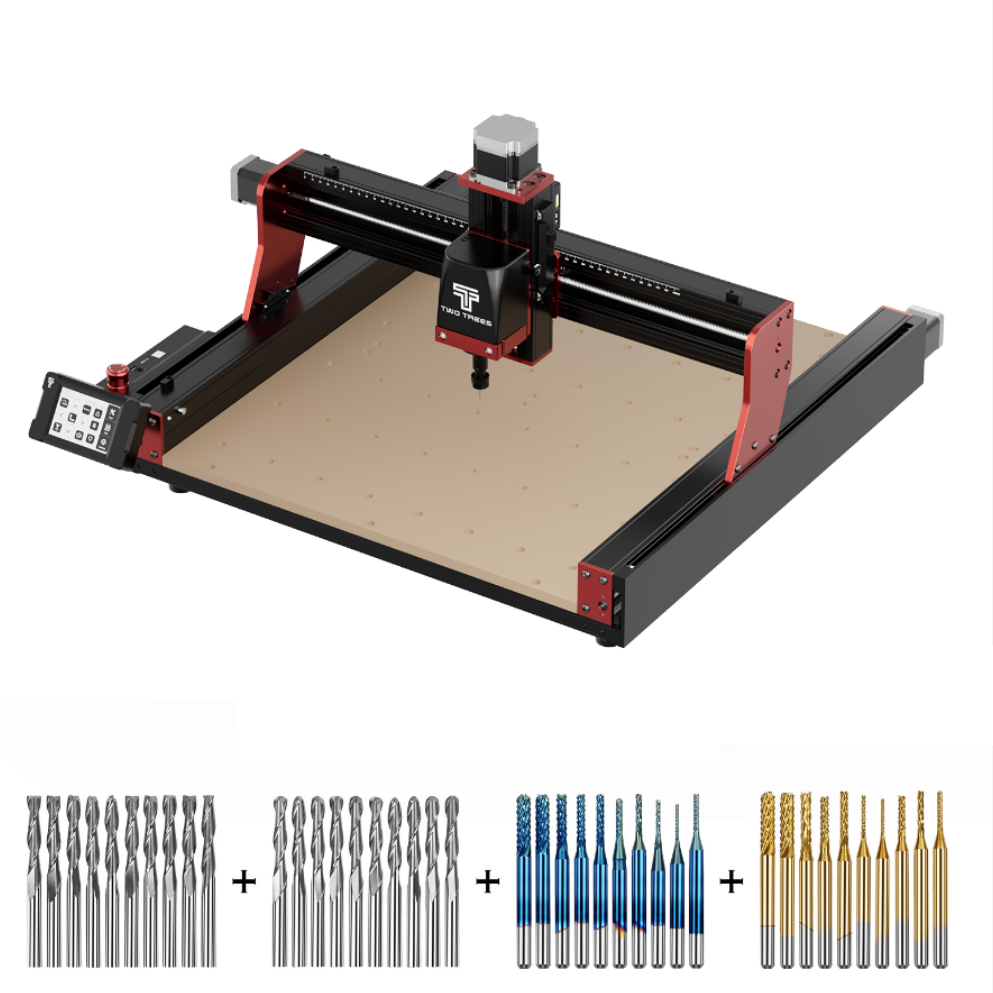

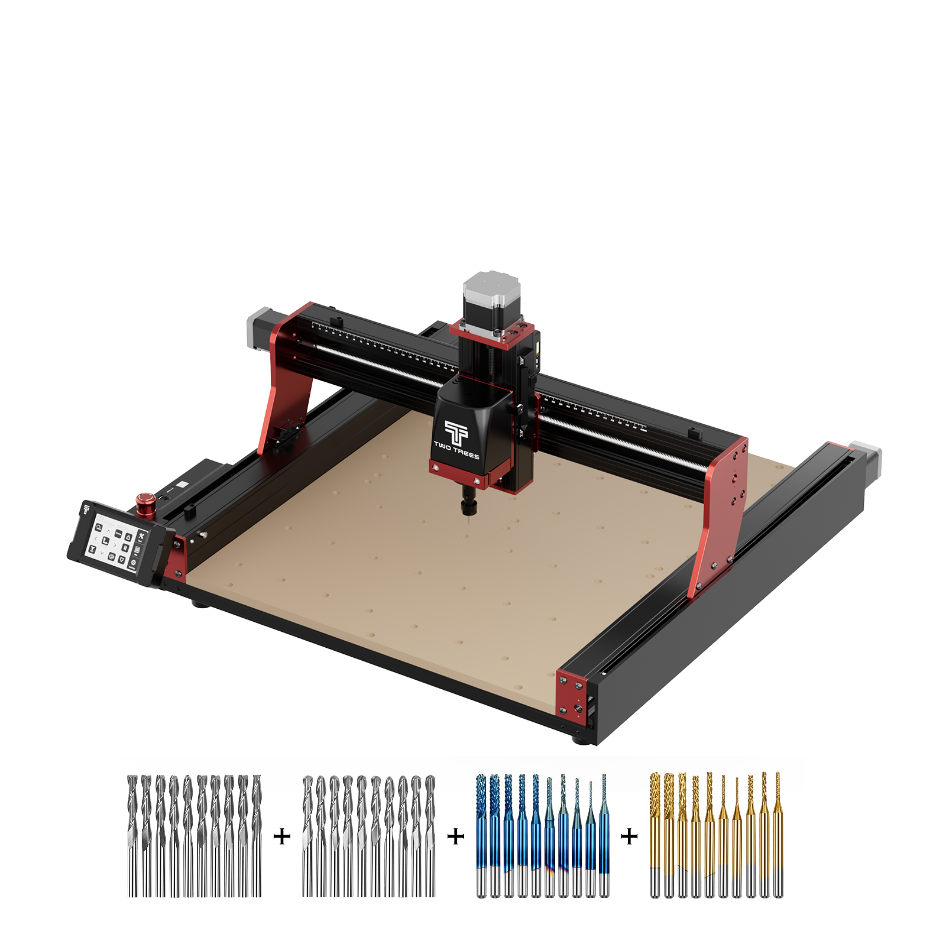

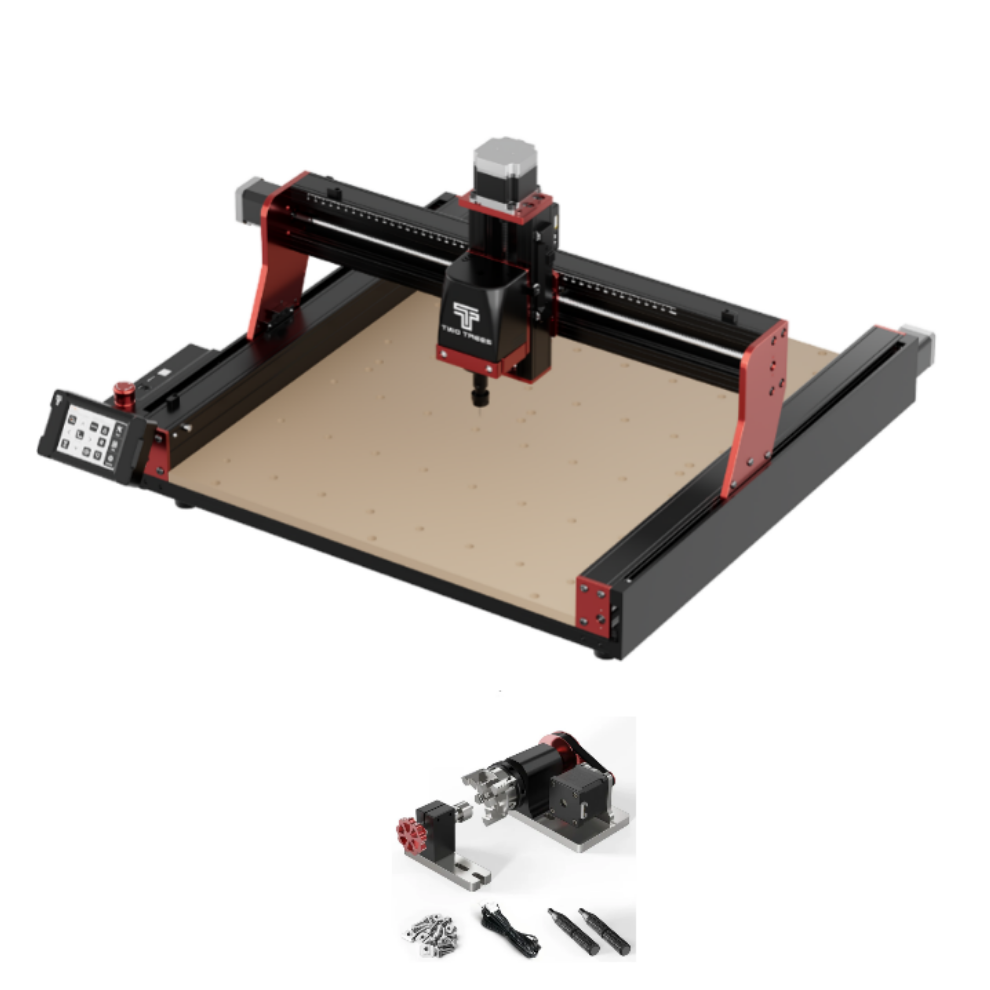

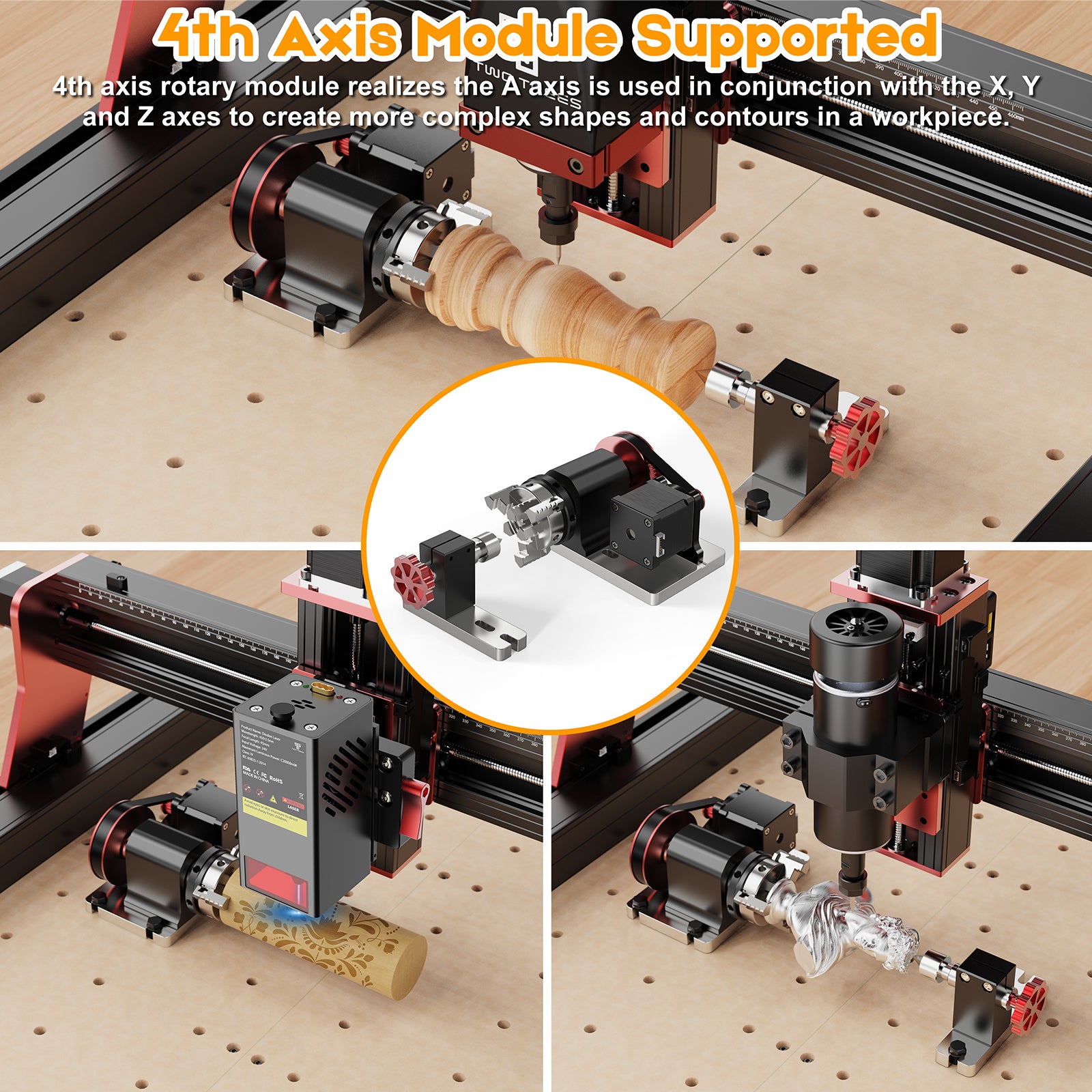

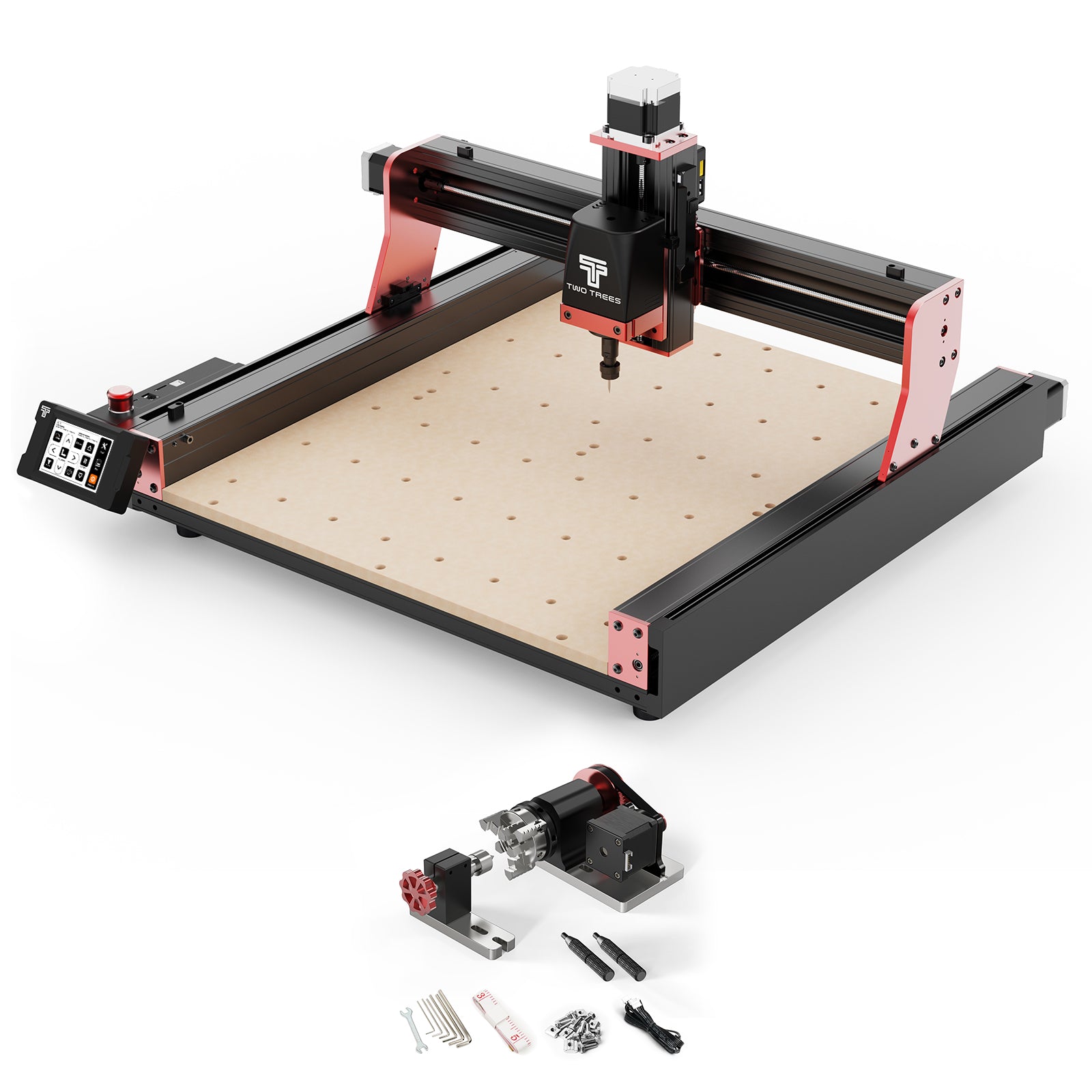

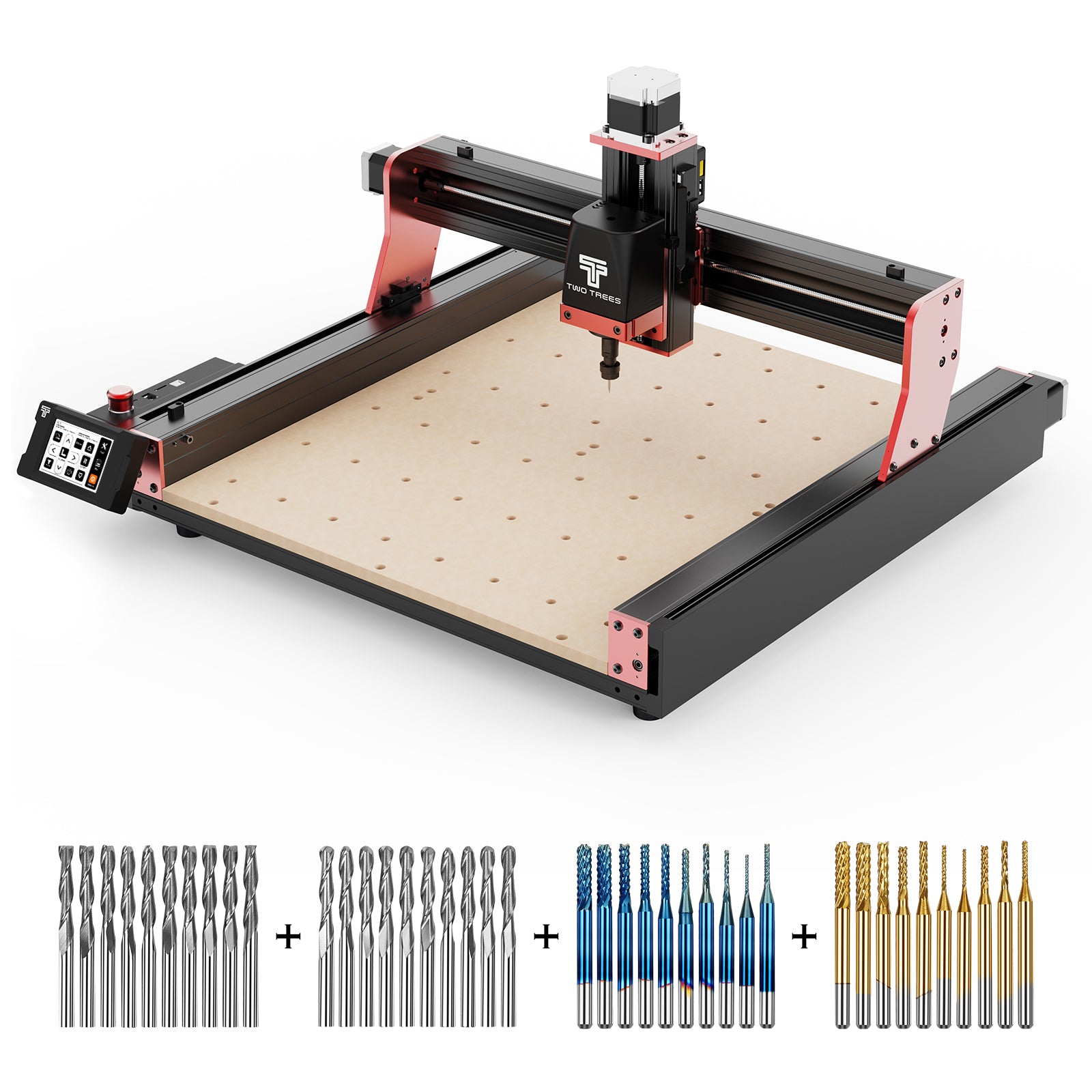

Odkryj akcesoria do TTC450 Pro
Popraw wydajność i wszechstronność
Specyfikacje techniczne
| Parameters | Specifications and Features |
|---|---|
| Name | CNC Woodworking Engraving Machine |
| Model | TTC450 Pro |
| color | Red and Black |
| Frame structure | Sheet Metal + Aluminum Profile + Injection Molding + Stainless Steel |

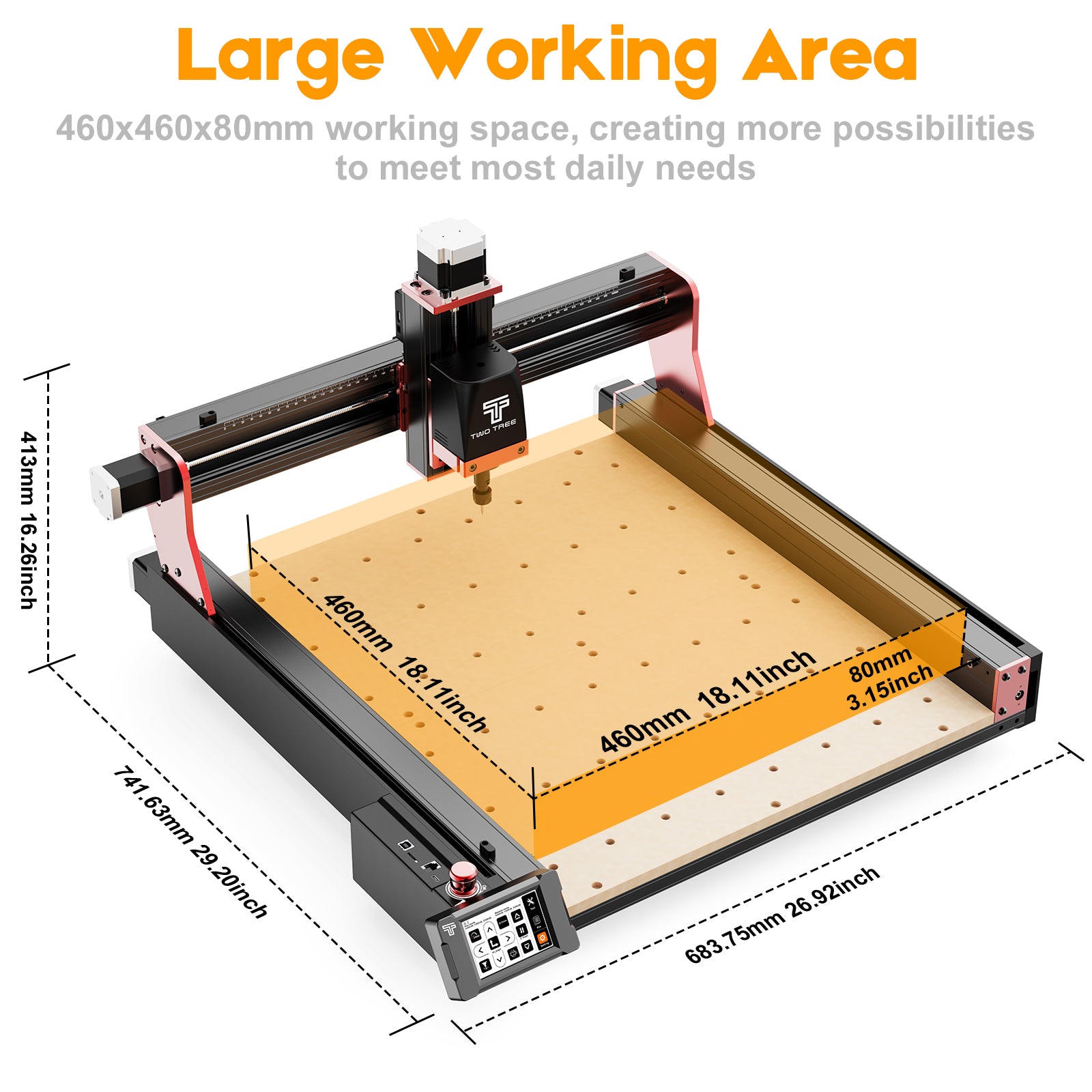

| Product size | 742mmX689mm X 413mm |
| Working range | 460mmX460mmX80mm(18.1in*18.1in*3.14in) |
| Supported tool diameter | 0.5mm to 7mm(ER11 chuck) |
| Compatible engraving materials | Plywood/MDF/Solid Wood/Acrylic/Carbon Brazing/Aluminum/Copper/Stainless Steel |
| Net weight | 15.45KG |
| Gross weight | 20.6KG |
| Packing size | 760X740x218mm |
| Power supply mode | 24V3A Power Adapter |
| Switch power supply parameters | INPUT:100AC-240AC 50GHZ OUTPUT:DC24V/3A |
| Touch screen | 3.5-inch IPS capacitive touch color screen (480*320 resolution) |

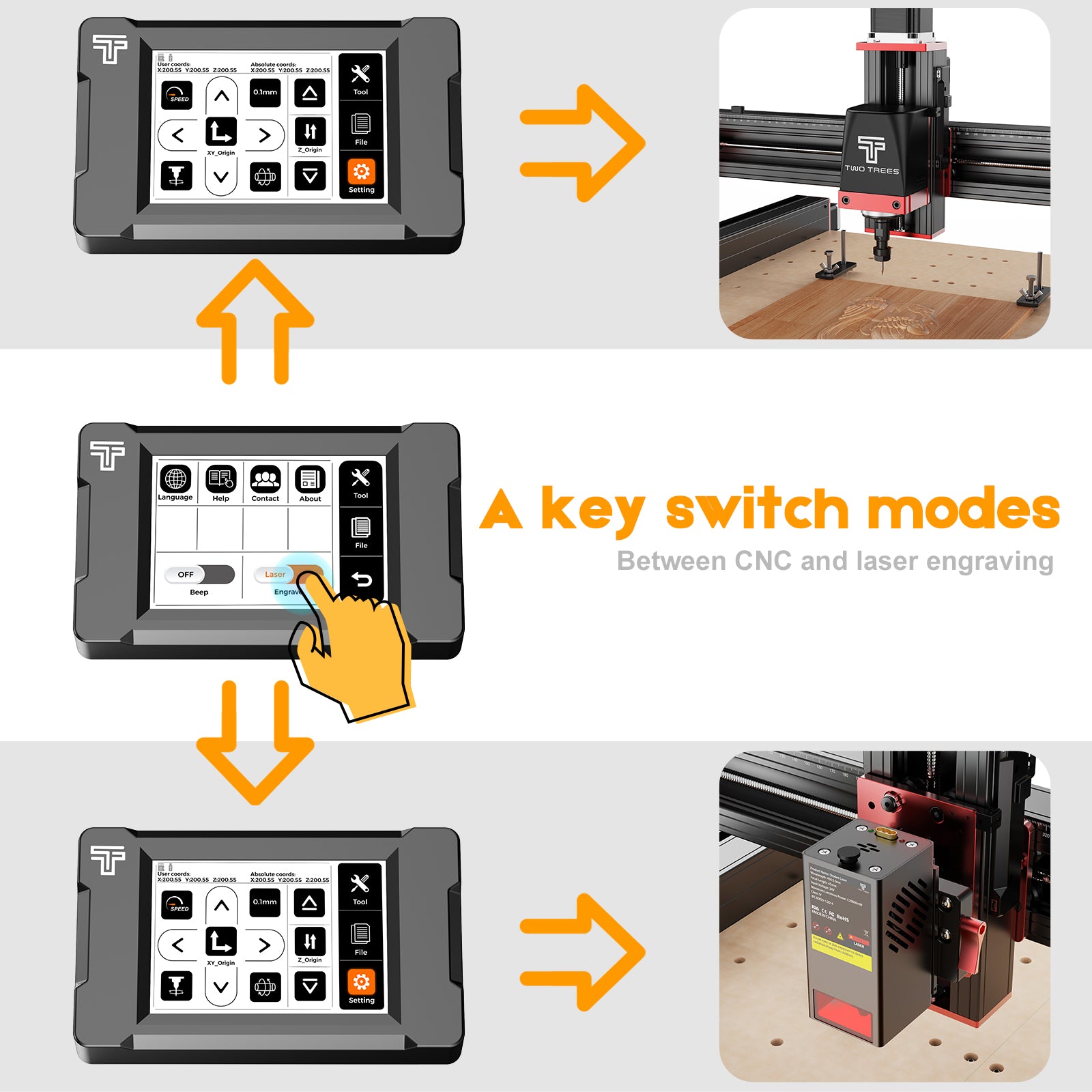

| Firmware type | GRBL open source, supports both CNC and laser (no firmware required) |
| Support | TF storage card | USB port | Wifi-2.4G Hz |
| Not supported | Wifi-5G Hz | Bluetooth | Ethernet | USB flash drive |
| Engraving accuracy | 100±0.05mm |
| Maximum engraving speed | 800mm/min |
| Maximum acceleration | 1000mm/s² |
| Spindle motor | 775 brushed motor (standard) |
| Spindle speed | Depending on the installation, the spindle speed range is 8000-30000RPM |
| Tool size | According to ER11 collet inner hole size supports 0.5-6MM diameter tool |
| Engraving layer height | Non-metal 0.1mm-20mm Metal 0.1mm-0.2mm |

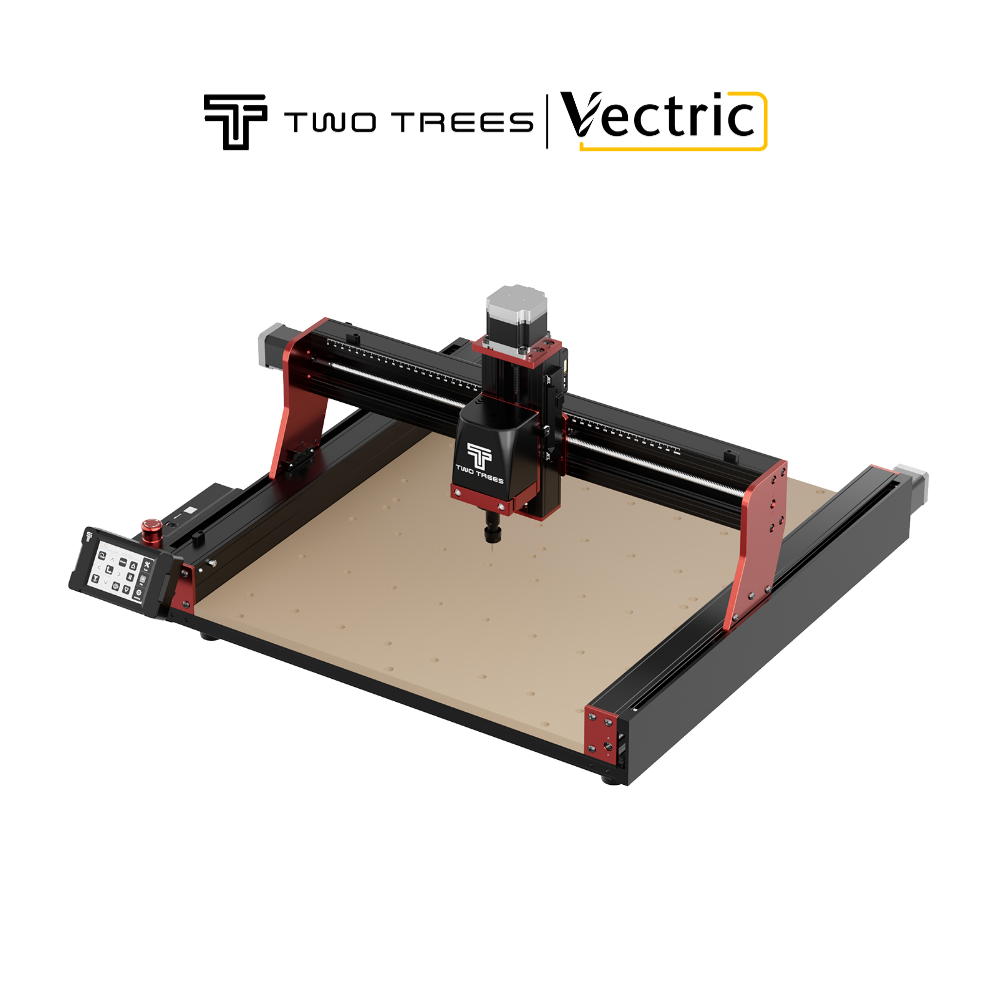

| Programming software | Artcam, Fusion360, EASEL , Carveco Maker, etc. |
| Support system | MacOS\Windows\Linux |
| Software language | Chinese\English\Spanish\German\French\Russian\Portuguese\Italian\Japanese\Korean\Turkish |
| Program support format | .nci\Gcode |
| Safety certification | CE-EMC/CE-LVD/CE-MD/CE-RED/ROHS/FCC-Sdoc/FCC-ID |
| Optimal engraving environment temperature | 0°-40° |
Uwolnij kreatywność z TTC450 Pro
